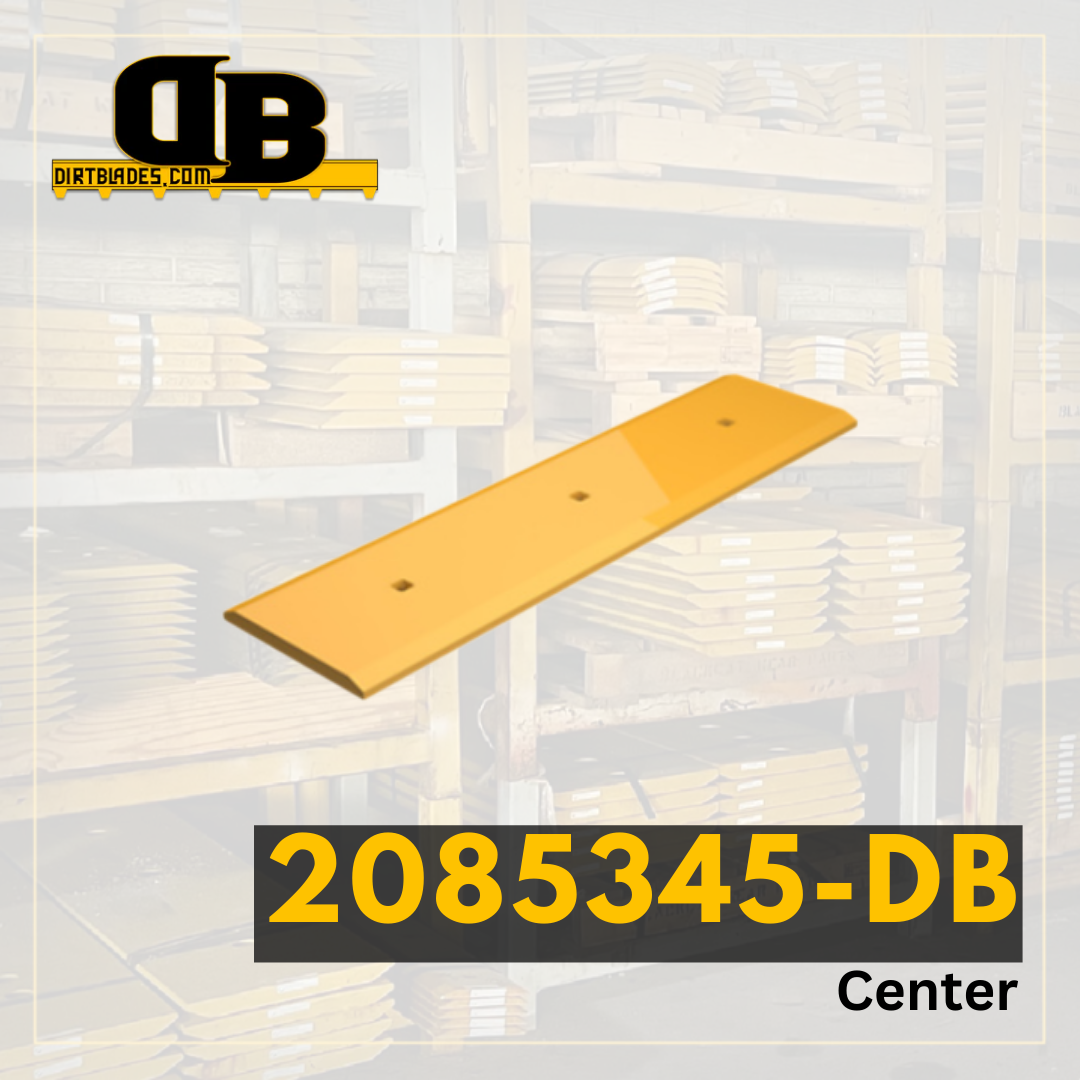

1.18" X 14.17" X 51.875" REV CENTER
Model Number | 960 |
---|---|
Series Number | F |
Configuration | Corner Guard System, Material Handling |
Serial Number | 7I3106 1052956 1070582 |
Blade Position | C/IMP Center REV |
Blade Thickness | 1.18 |
Blade Width | 14.17 |
Blade Length | 51.875 |
Hole Quantity | 3 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 9.875 |
Second Hole Distance From First Hole in Inches | 16.875 |
Third Hole Distance From Second Hole in Inches | 16.875 |
Bolt Quantity for First Row of Holes | 3 |
Bolt Length for First Row of Holes | 4.125 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
