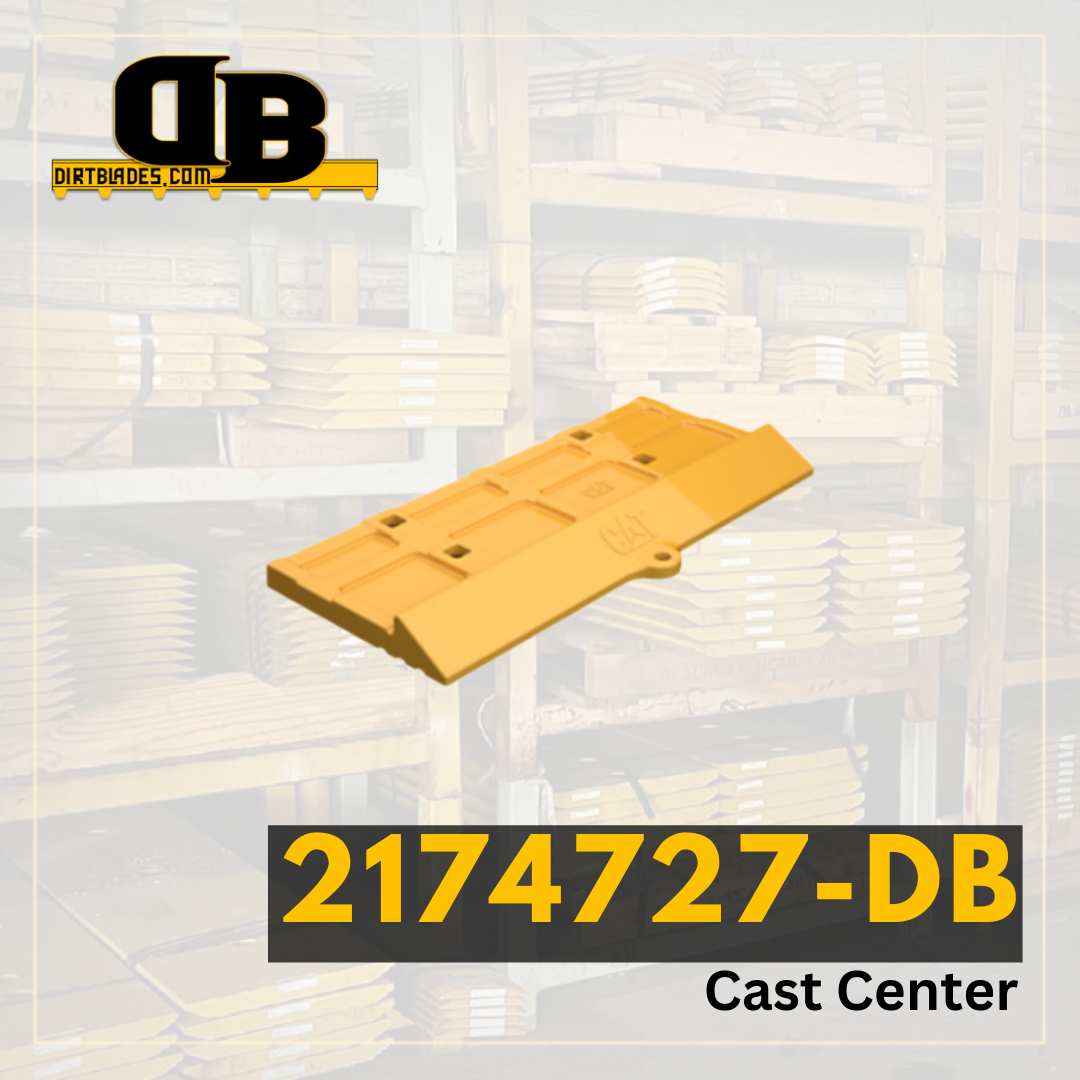

1.75" X 16.75" X 37.938" CAST CENTER
| Model Number | 962 |
|---|---|
| Series Number | G |
| Configuration | Corner Guard System |
| Serial Number | 2484153 |
| Blade Position | HA Center Cast |
| Blade Thickness | 1.75 |
| Blade Width | 16.75 |
| Blade Length | 37.938 |
| Hole Quantity | 4 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 9.422 |
| Second Hole Distance From First Hole in Inches | 19.094 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 2 |
| Bolt Length for Second Row of Holes | 4.125 |
| Second Set of Holes First Hole Distance From End | 9.422 |
| Second Set of Holes Second Hole Distance From First Hole | 19.094 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
