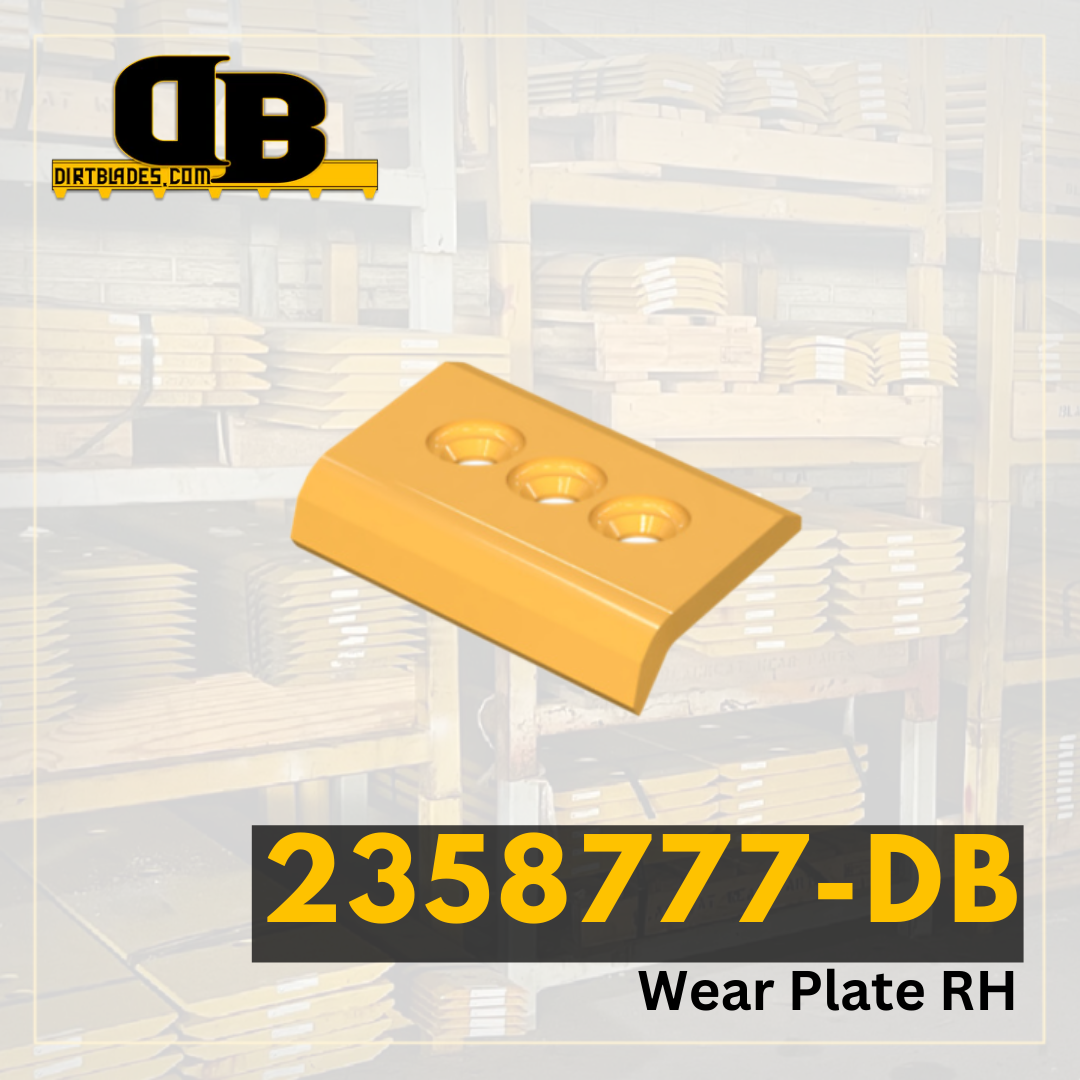

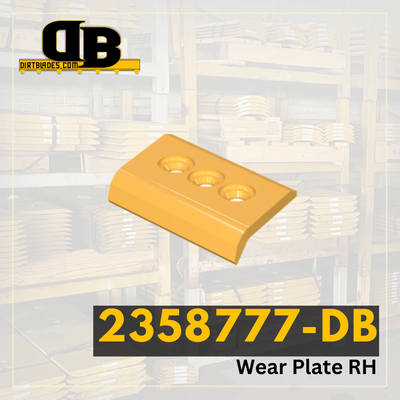

2358777-DB | Top Plate RH

SKU: 2358777
Regular price $0.00

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.

Model Number 992
Series Number G K
Configuration High Abrasion System
Serial Number 3230151 3230121
Blade Position Top Plate for Half Arrow RH
Blade Thickness 1
Blade Width 10
Blade Length 17.169
Hole Quantity 3
Bolt Diameter 1.5
First Hole Distance From End in Inches 5.366
Second Hole Distance From First Hole in Inches 3.346
Third Hole Distance From Second Hole in Inches 3.346
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
