2508402-DB

SKU: 2508402-DB
Regular price $3,214.64

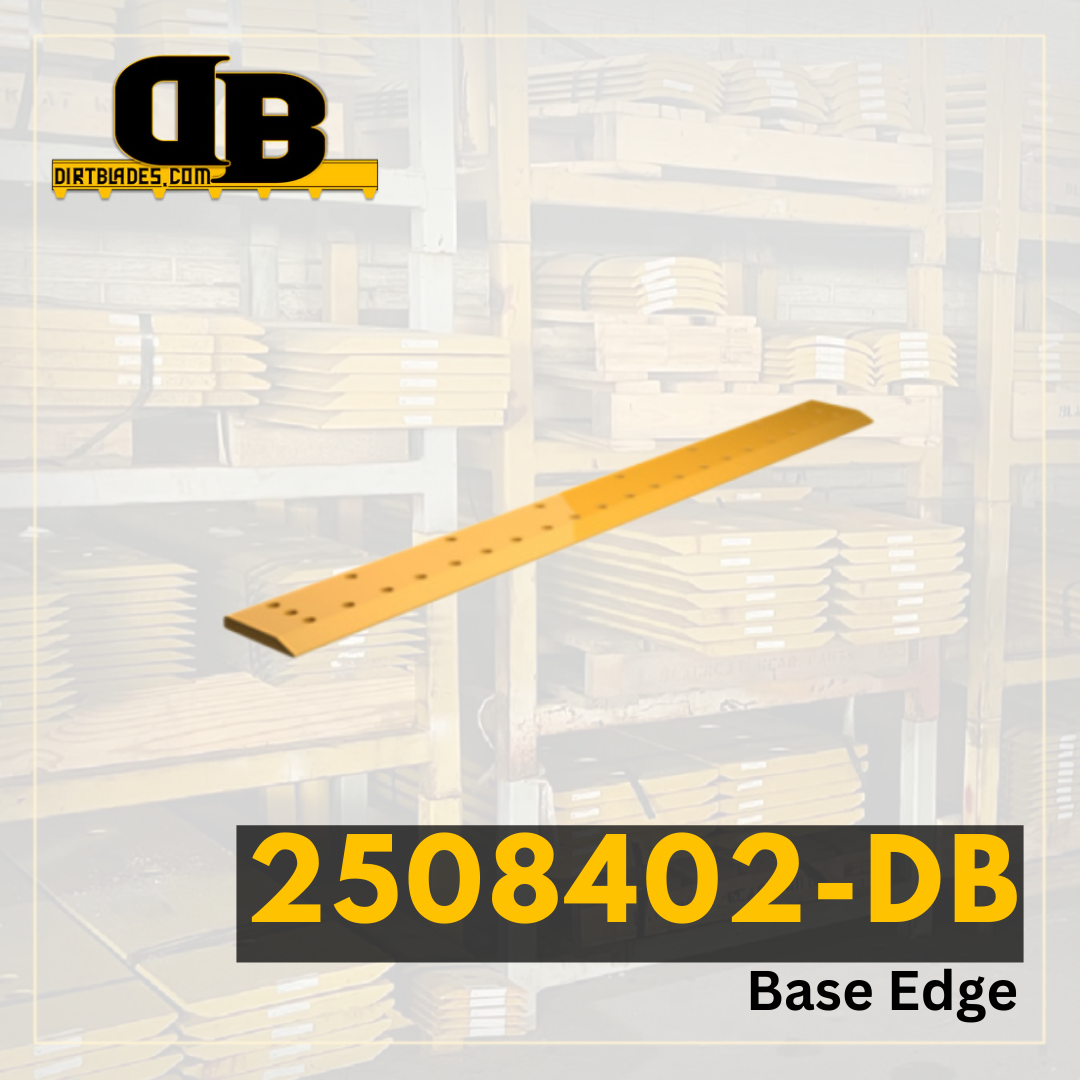

2" X 17.717" X 151.772" BASE EDGE

Model Number 988
Series Number G H
Configuration General Purpose, Corner Guard System
Serial Number 2658219 3330921 3357251 2508401 2718431 3146331 3146381 3291561 3241701
Blade Position Base Edge With Segment Holes
Blade Thickness 2
Blade Width 17.717
Blade Length 151.772
Hole Quantity 30
Bolt Diameter 1.5
First Hole Distance From End in Inches 6.299
Second Hole Distance From First Hole in Inches 10.433
Third Hole Distance From Second Hole in Inches 5.512
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 139.173
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
