OEM quality corners offer high manufacturing precision and protect bucket sides with a wear-resistant surface. The Ground Engaging Tools (GET) are designed for to deliver consistent, superior protection. Corners are replaceable wear surfaces that protect the bucket's structural integrity, while durable Sidecutters maintain hardness for long wear life.
| Model Number | 916 |
|---|---|
| Series | |
| Configuration | Corner Guard System |
| Serial Number | 9C4940 8V7152 6W7769 8R2126 8R2127 9C4938 9C4939 6W5994 8V7153 1119634 |

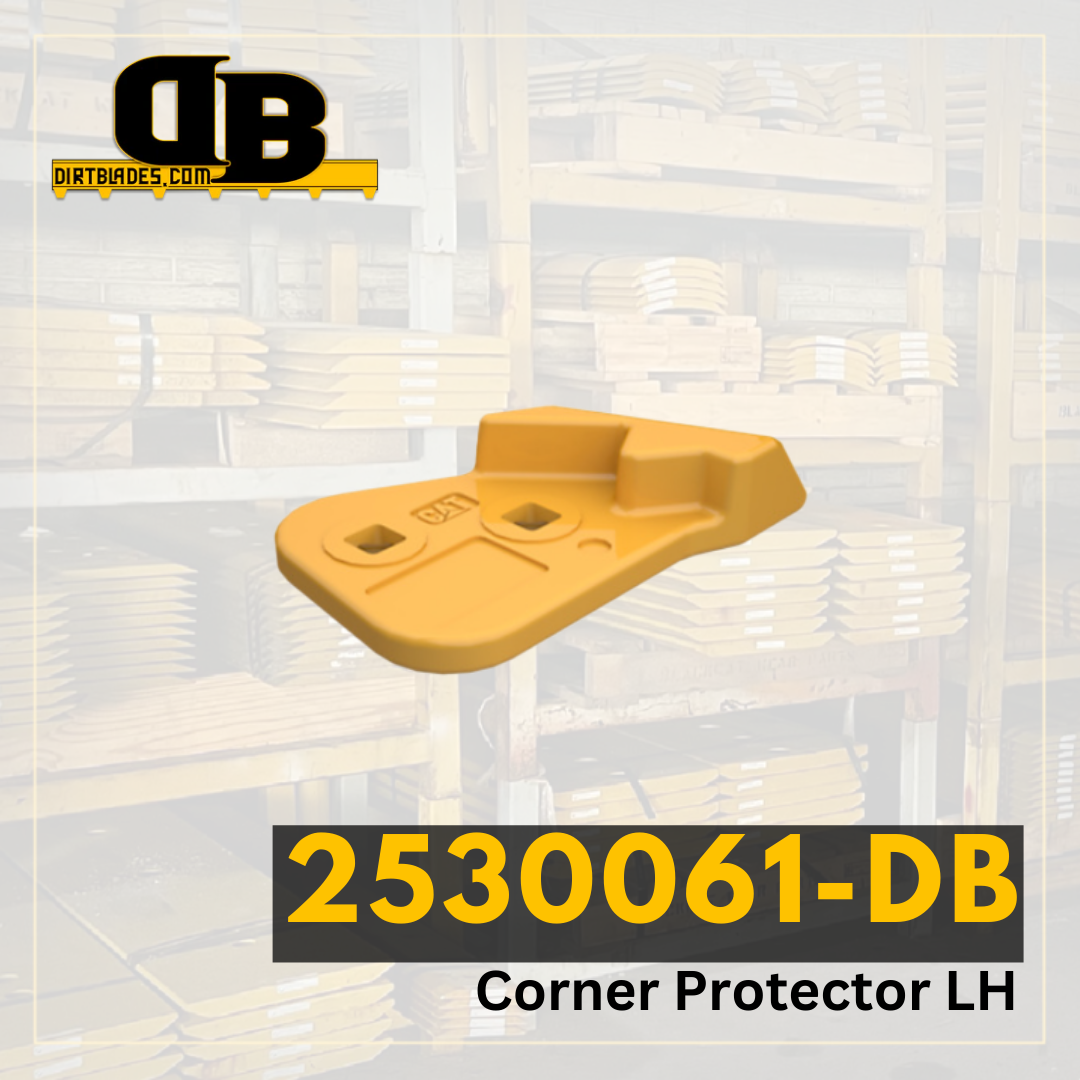

| Blade Position | New Style 2 Hole Corner Protector LH |
| Blade Thickness | 0.875 |
| Blade Width | 8.313 |
| Blade Length | 12.25 |
| Hole Quantity | 2 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 0 |
| Second Hole Distance From First Hole in Inches | 0 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 3 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
