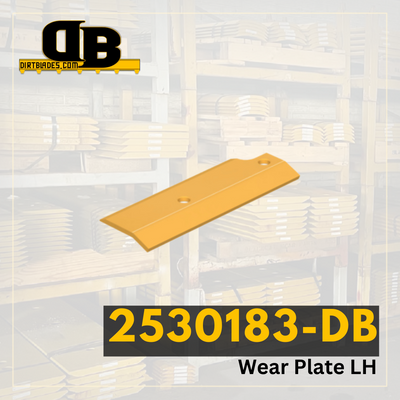

.625" X 8" X 24.11" LH TOP PLATE HALF
| Model Number | 962 |
|---|---|
| Series Number | G |
| Configuration | Corner Guard System |
| Serial Number | 2484153 |
| Blade Position | Top Plate for Half Arrow LH |
| Blade Thickness | 0.625 |
| Blade Width | 8 |
| Blade Length | 24.111 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 9.422 |
| Second Hole Distance From First Hole in Inches | 13.189 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
