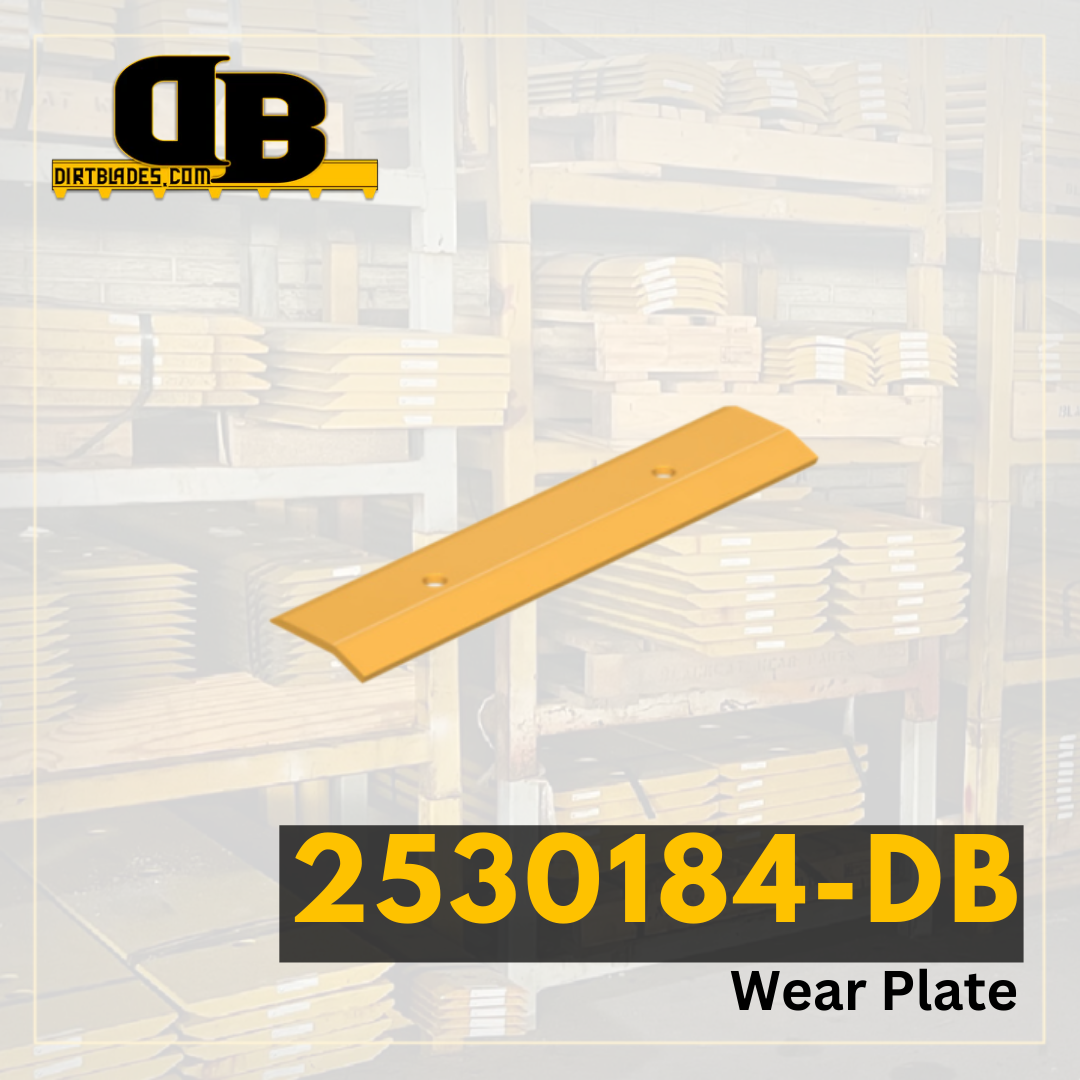

2530184-DB | Wear Plate

SKU: 2530184
Regular price $139.37

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.

Model Number 962
Series Number G
Configuration Corner Guard System
Serial Number 2484153
Blade Position Top Plate for Half Arrow Center
Blade Thickness 0.625
Blade Width 8
Blade Length 37.939
Hole Quantity 2
Bolt Diameter 1.25
First Hole Distance From End in Inches 9.422
Second Hole Distance From First Hole in Inches 19.095
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 2
Bolt Length for First Row of Holes 5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
