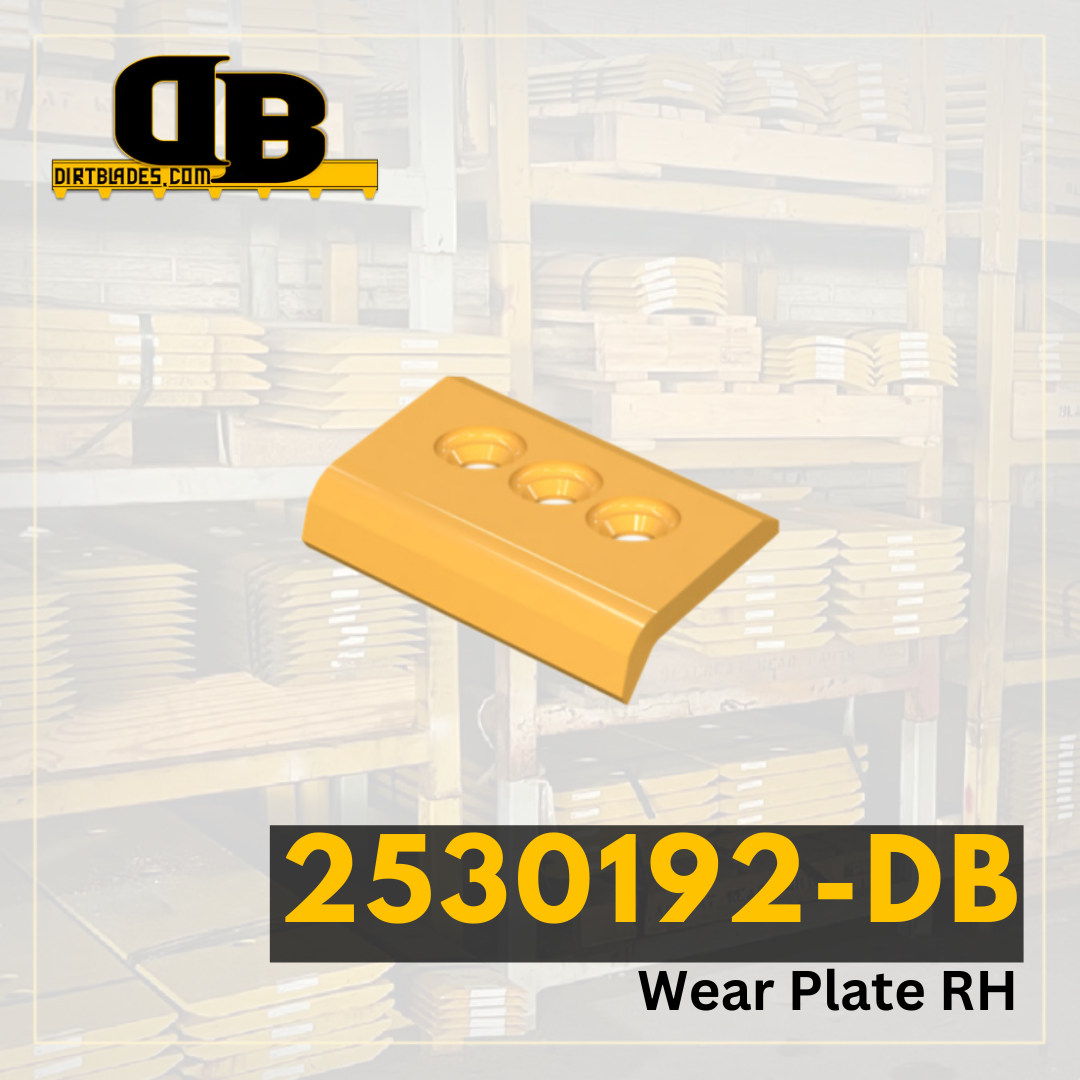

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | D11 |
|---|---|
| Series Number | R |
| Configuration | Carrydozer |
| Serial Number | 5JP BHZ MGP |
| Blade Position | Carbide HD Rev. Center with Two Rows of Holes |
| Blade Thickness | 2.5 |
| Blade Width | 19 |
| Blade Length | 39.5 |
| Hole Quantity | 16 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 4.75 |
| Second Hole Distance From First Hole in Inches | 3 |
| Third Hole Distance From Second Hole in Inches | 3 |
| Bolt Quantity for First Row of Holes | 8 |
| Bolt Length for First Row of Holes | 5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 4.75 |
| Second Set of Holes Second Hole Distance From First Hole | 3 |
| Second Set of Holes Third Hole Distance From Second Hole | 3 |
