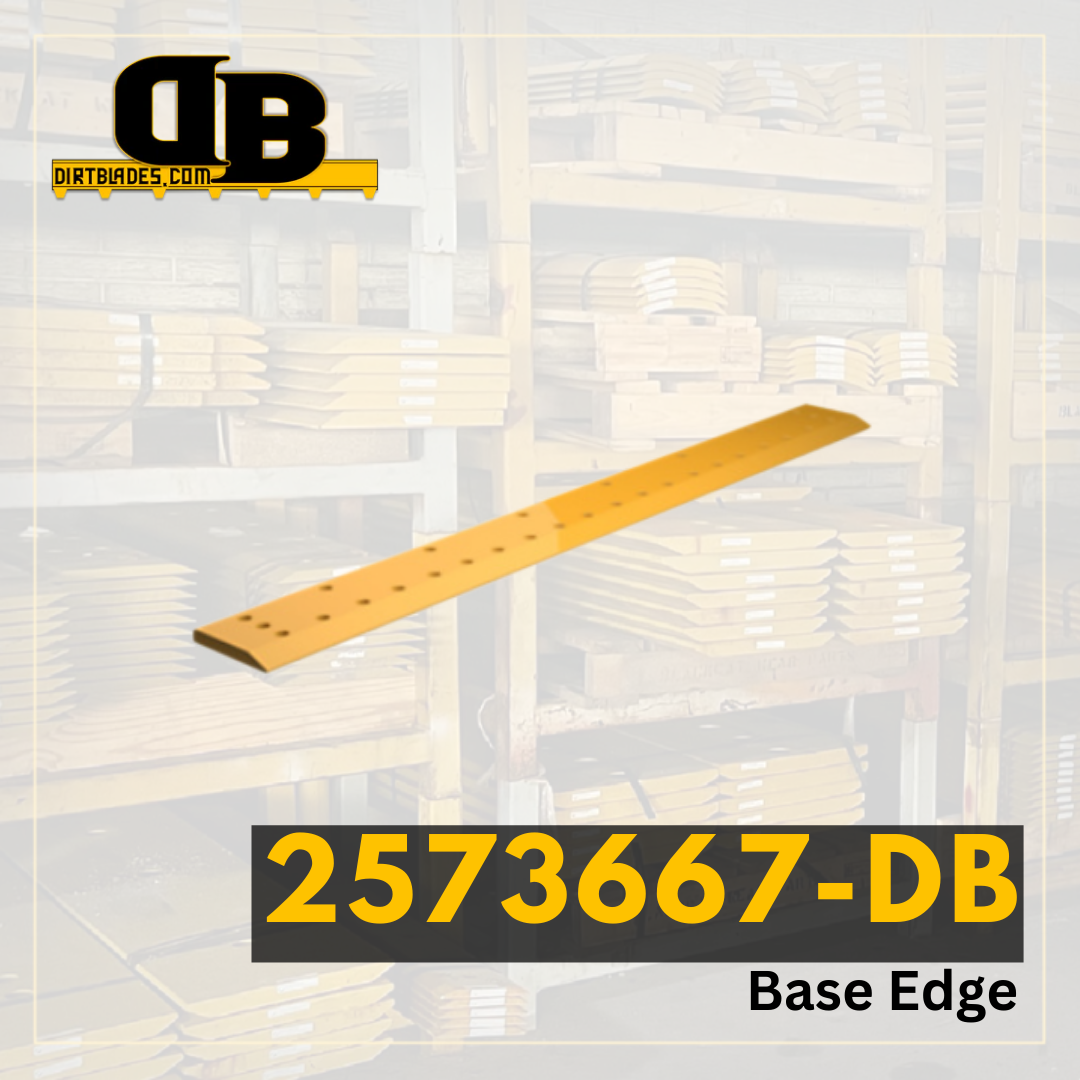

2" x 15.748" x 145.472" BASE EDGE
Model Number | 988 |
---|---|
Series Number | G H |
Configuration | Corner Guard System |
Serial Number | 2462753 2609755 3230190 |
Blade Position | Base Edge With Segment Holes |
Blade Thickness | 2 |
Blade Width | 15.748 |
Blade Length | 145.472 |
Hole Quantity | 30 |
Bolt Diameter | 1.375 |
First Hole Distance From End in Inches | 6.22 |
Second Hole Distance From First Hole in Inches | 9.488 |
Third Hole Distance From Second Hole in Inches | 5.551 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 6.22 |
Second Set of Holes Second Hole Distance From First Hole | 15.039 |
Second Set of Holes Third Hole Distance From Second Hole | 20.591 |
