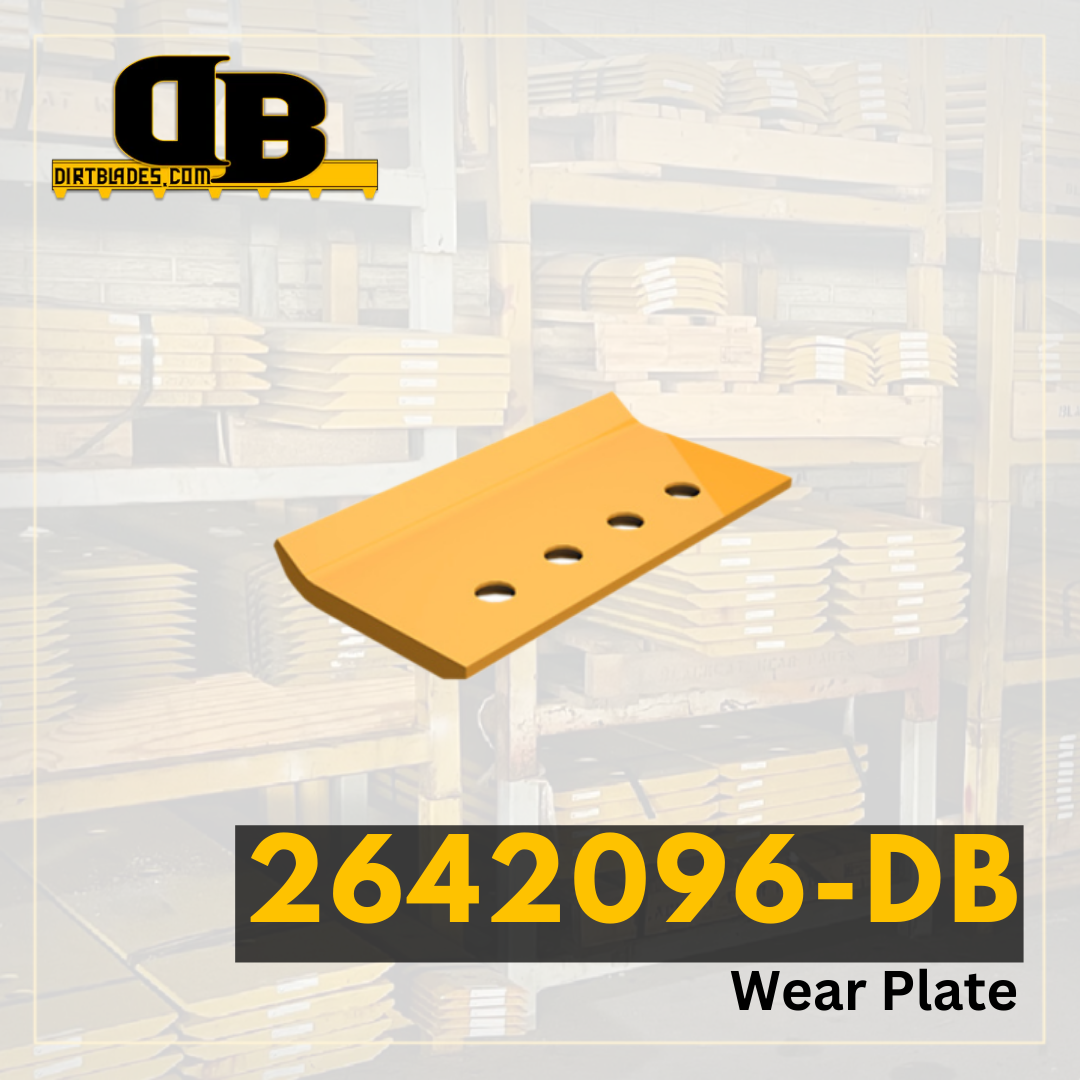

2642096-DB | Wear Plate

SKU: 2642096
Regular price $256.58

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.

Model Number 990
Series Number
Configuration High Abrasion System
Serial Number 2553764 28318913109101
Blade Position Top Plate for Half Arrow Center
Blade Thickness 1
Blade Width 10
Blade Length 18.504
Hole Quantity 4
Bolt Diameter 1.25
First Hole Distance From End in Inches 3.937
Second Hole Distance From First Hole in Inches 3.543
Third Hole Distance From Second Hole in Inches 3.543
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
