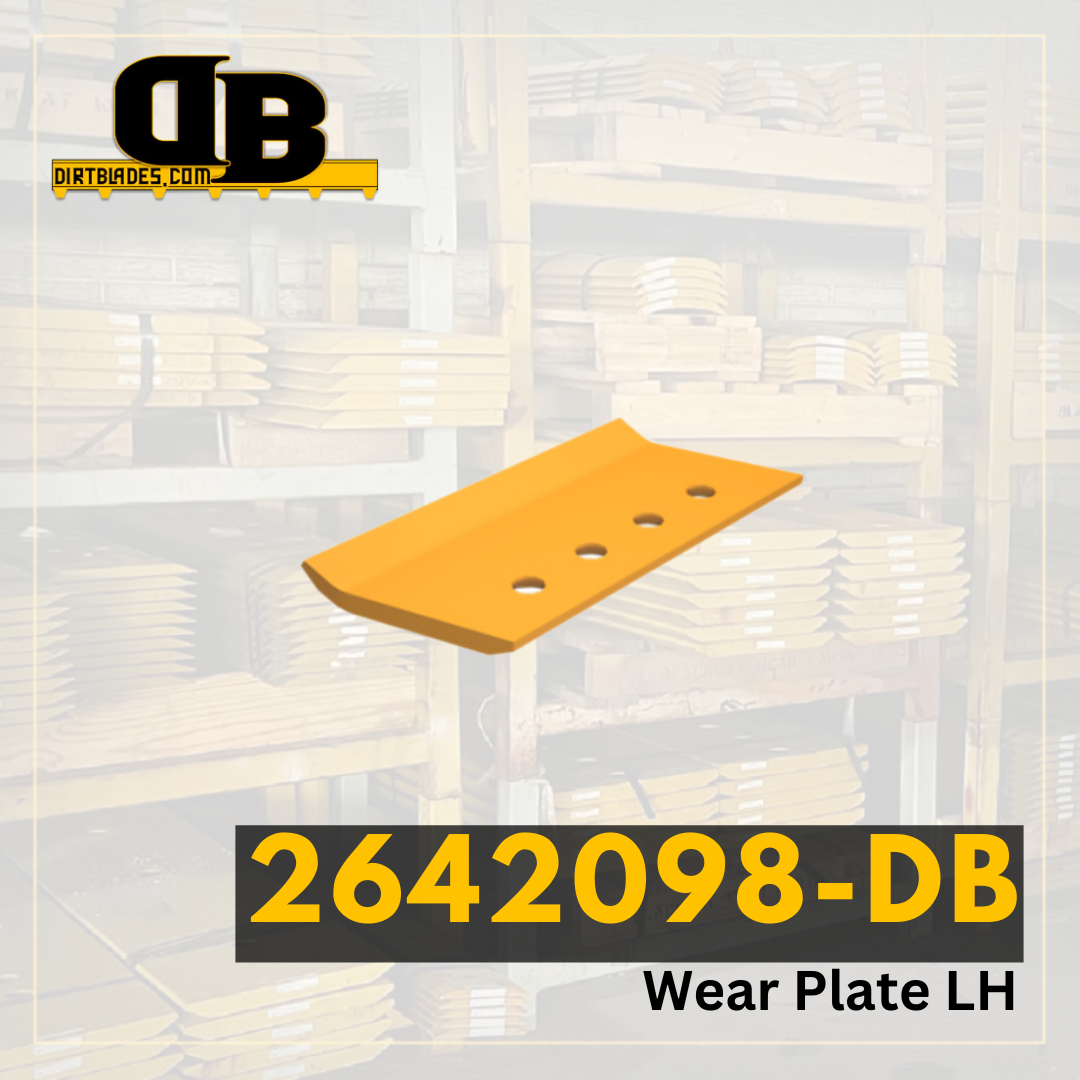

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | 936 |
|---|---|
| Series Number | E F |
| Configuration | Corner Guard System |
| Serial Number | 1037399 1037400 1058008 1058010 |
| Blade Position | HA Center |
| Blade Thickness | 1.125 |
| Blade Width | 10 |
| Blade Length | 53.002 |
| Hole Quantity | 4 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 4.125 |
| Second Hole Distance From First Hole in Inches | 11.44 |
| Third Hole Distance From Second Hole in Inches | 15 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
