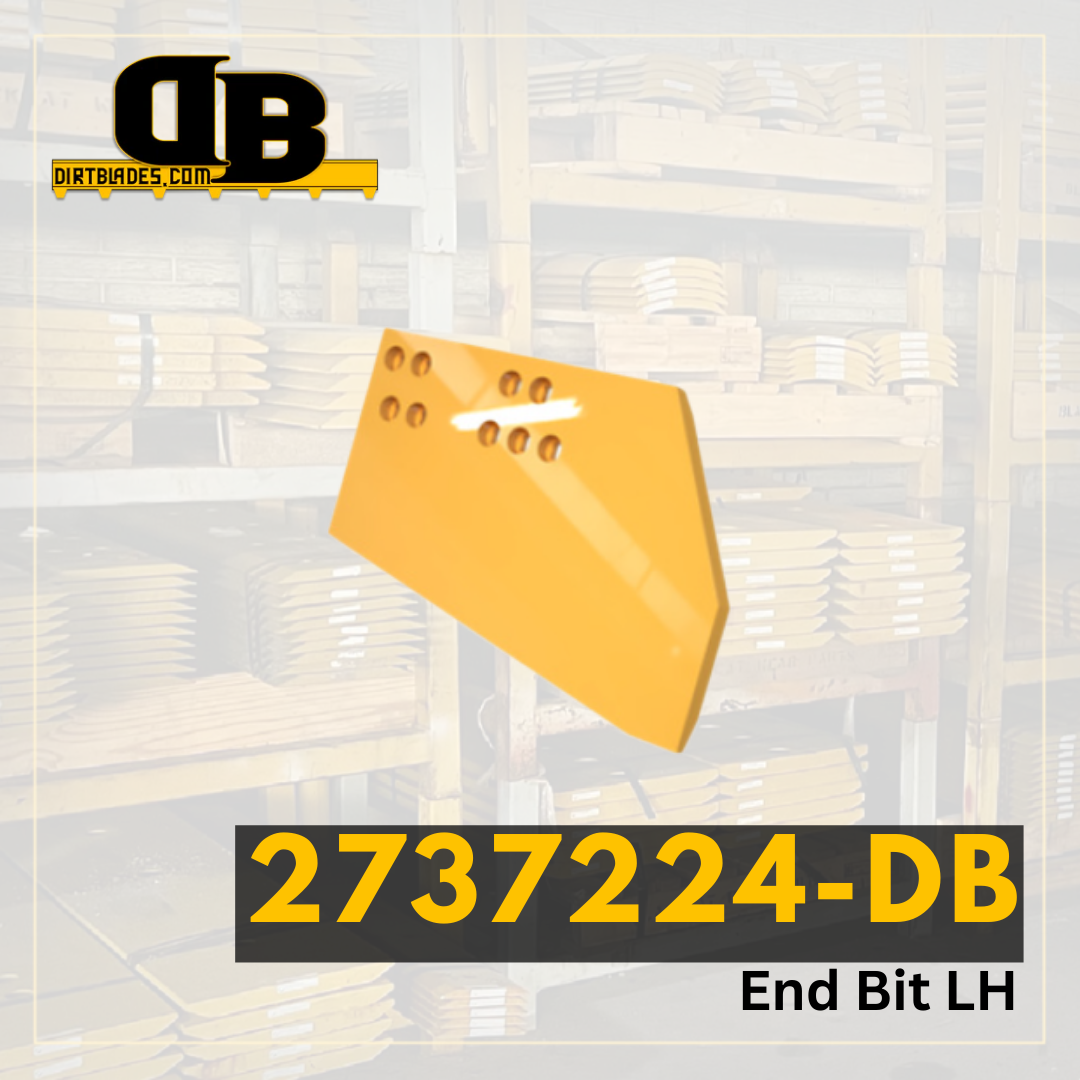

2.5" X 25.433" X 36.437" LH END BIT
Model Number | D11 |
---|---|
Series Number | R |
Configuration | Carrydozer |
Serial Number | 5JP BHZ MGP |
Blade Position | Penetration End Bit LH |
Blade Thickness | 2.5 |
Blade Width | 25.433 |
Blade Length | 36.437 |
Hole Quantity | 9 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 2.008 |
Second Hole Distance From First Hole in Inches | 2.953 |
Third Hole Distance From Second Hole in Inches | 9.291 |
Bolt Quantity for First Row of Holes | 4 |
Bolt Length for First Row of Holes | 5 |
Bolt Quantity for Second Row of Holes | 5 |
Bolt Length for Second Row of Holes | 5 |
Second Set of Holes First Hole Distance From End | 2.972 |
Second Set of Holes Second Hole Distance From First Hole | 2.953 |
Second Set of Holes Third Hole Distance From Second Hole | 7.638 |
