2737226-DB

SKU: 2737226-DB
Regular price $1,108.81

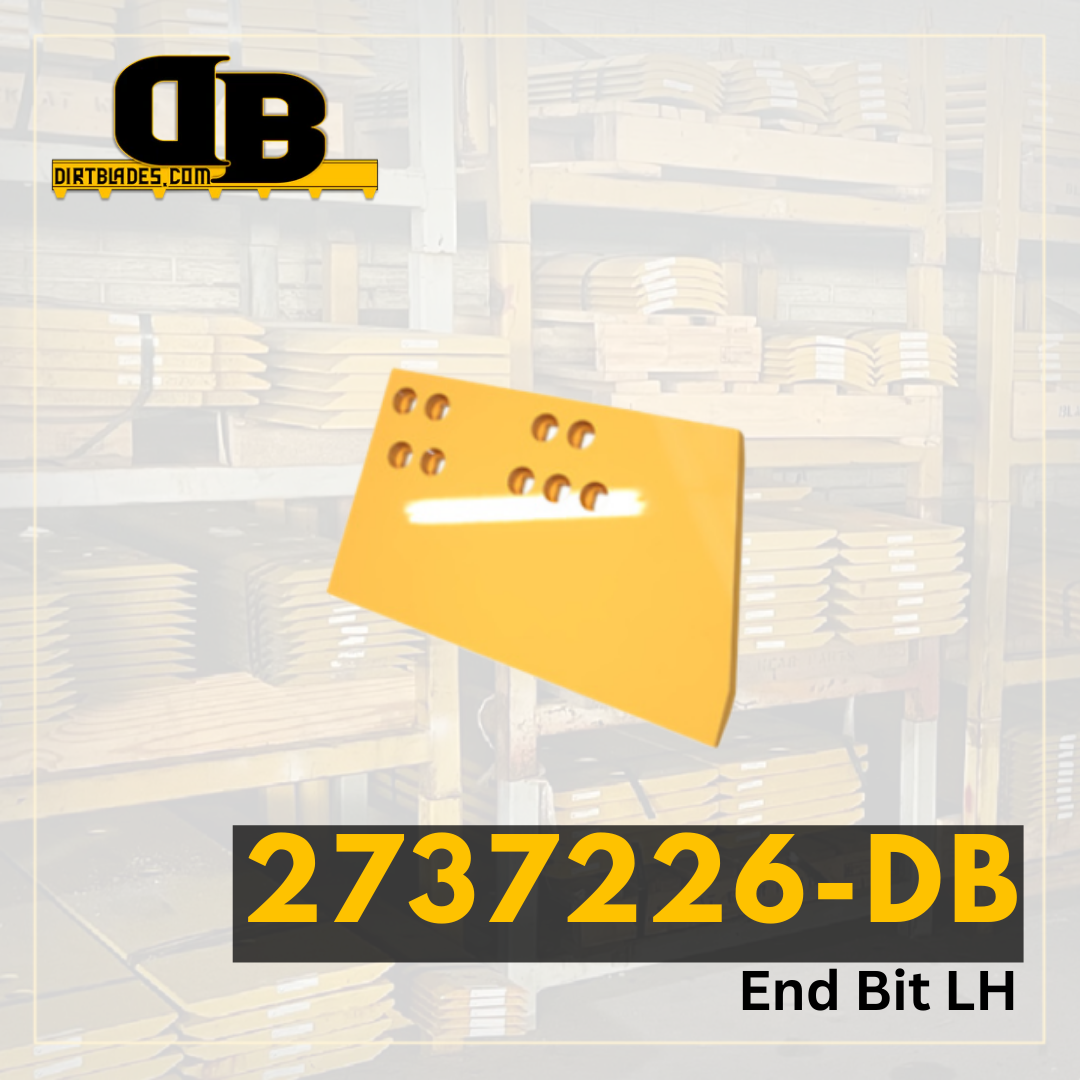

2.5" X 21.5" X 32.5" LH FLAT END BIT

Model Number D11
Series Number R
Configuration Carrydozer
Serial Number 5JP BHZ MGP
Blade Position Flat Shape Cut End Bit LH
Blade Thickness 2.5
Blade Width 21.496
Blade Length 32.5
Hole Quantity 9
Bolt Diameter 1.25
First Hole Distance From End in Inches 2.008
Second Hole Distance From First Hole in Inches 2.953
Third Hole Distance From Second Hole in Inches 9.291
Bolt Quantity for First Row of Holes 4
Bolt Length for First Row of Holes 5
Bolt Quantity for Second Row of Holes 5
Bolt Length for Second Row of Holes 5
Second Set of Holes First Hole Distance From End 2.972
Second Set of Holes Second Hole Distance From First Hole 2.953
Second Set of Holes Third Hole Distance From Second Hole 7.638
