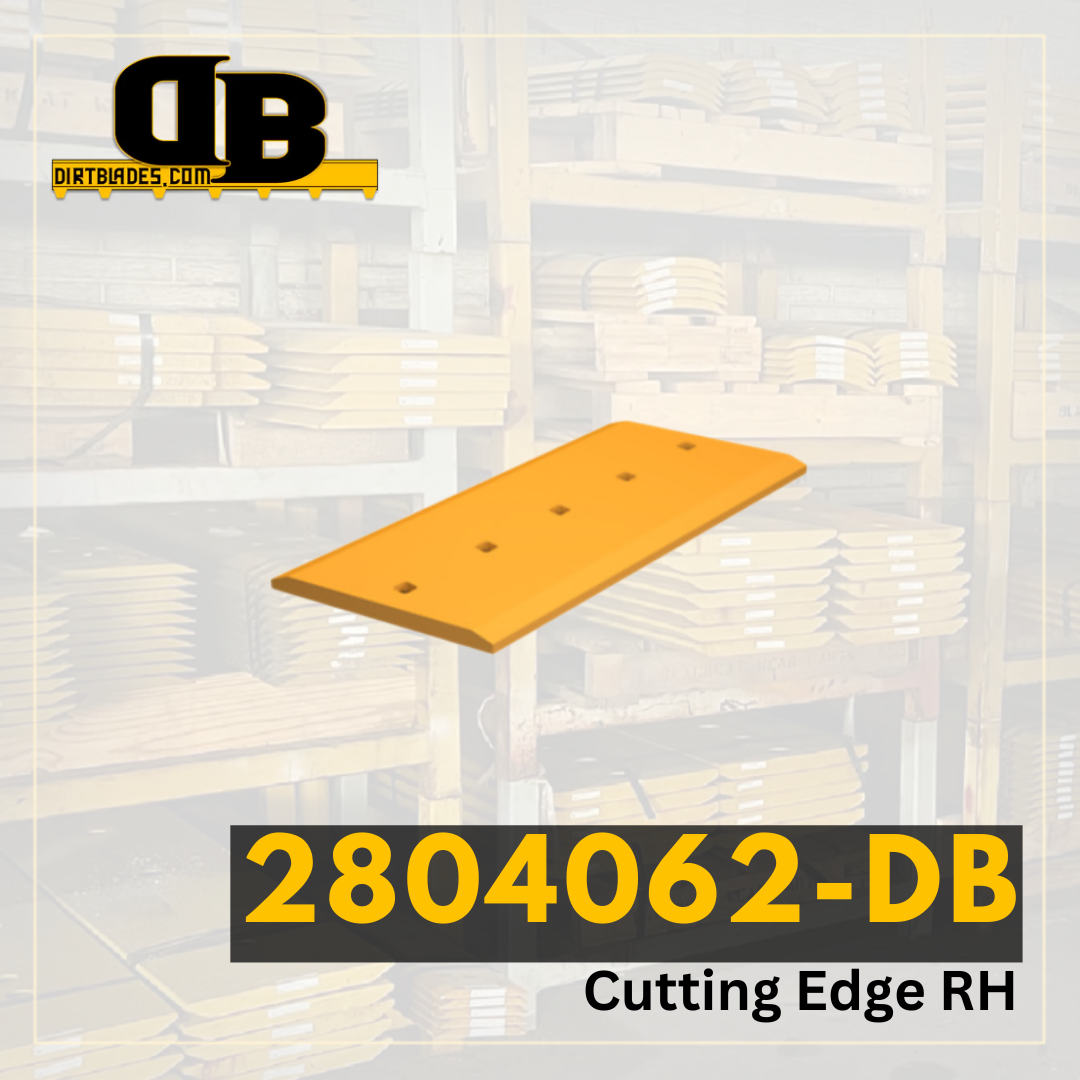

2804062-DB | Heavy Duty Cutting Edge RH
Regular price
$693.45
Couldn't load pickup availability
Model Number | 988 |
---|---|
Series Number | G H |
Configuration | General Purpose, Spade Nose Rock |
Serial Number | 2888191 2888291 3109061 3165891 3330881 |
Blade Position | Center RH |
Blade Thickness | 1.625 |
Blade Width | 18.996 |
Blade Length | 45.406 |
Hole Quantity | 5 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 5.417 |
Second Hole Distance From First Hole in Inches | 8.638 |
Third Hole Distance From Second Hole in Inches | 8.638 |
Bolt Quantity for First Row of Holes | 5 |
Bolt Length for First Row of Holes | 3.75 |
Bolt Quantity for Second Row of Holes | |
Bolt Length for Second Row of Holes | |
Second Set of Holes First Hole Distance From End | |
Second Set of Holes Second Hole Distance From First Hole | |
Second Set of Holes Third Hole Distance From Second Hole |
