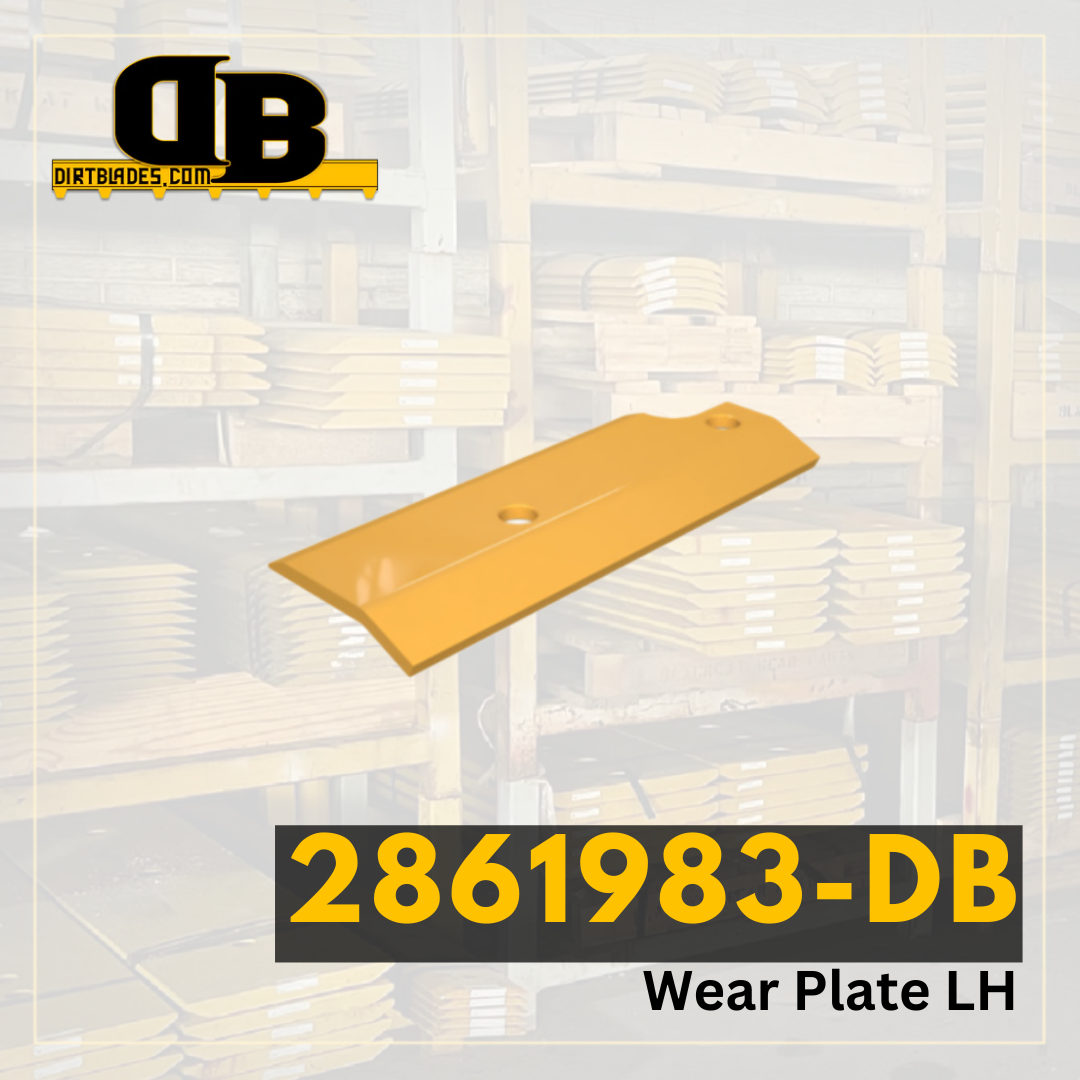

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | D11 |
|---|---|
| Series Number | N R T |
| Configuration | Full-U |
| Serial Number | 4CB 5TB 9MH 9ZH 4YP 8RP LWP |
| Blade Position | End Bit (Short Side) LH |
| Blade Thickness | 2.5 |
| Blade Width | 14.75 |
| Blade Length | 32.5 |
| Hole Quantity | 9 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 2.008 |
| Second Hole Distance From First Hole in Inches | 2.953 |
| Third Hole Distance From Second Hole in Inches | 9.291 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 3 |
| Bolt Length for Second Row of Holes | 4.125 |
| Second Set of Holes First Hole Distance From End | 2.972 |
| Second Set of Holes Second Hole Distance From First Hole | 2.953 |
| Second Set of Holes Third Hole Distance From Second Hole | 7.638 |
