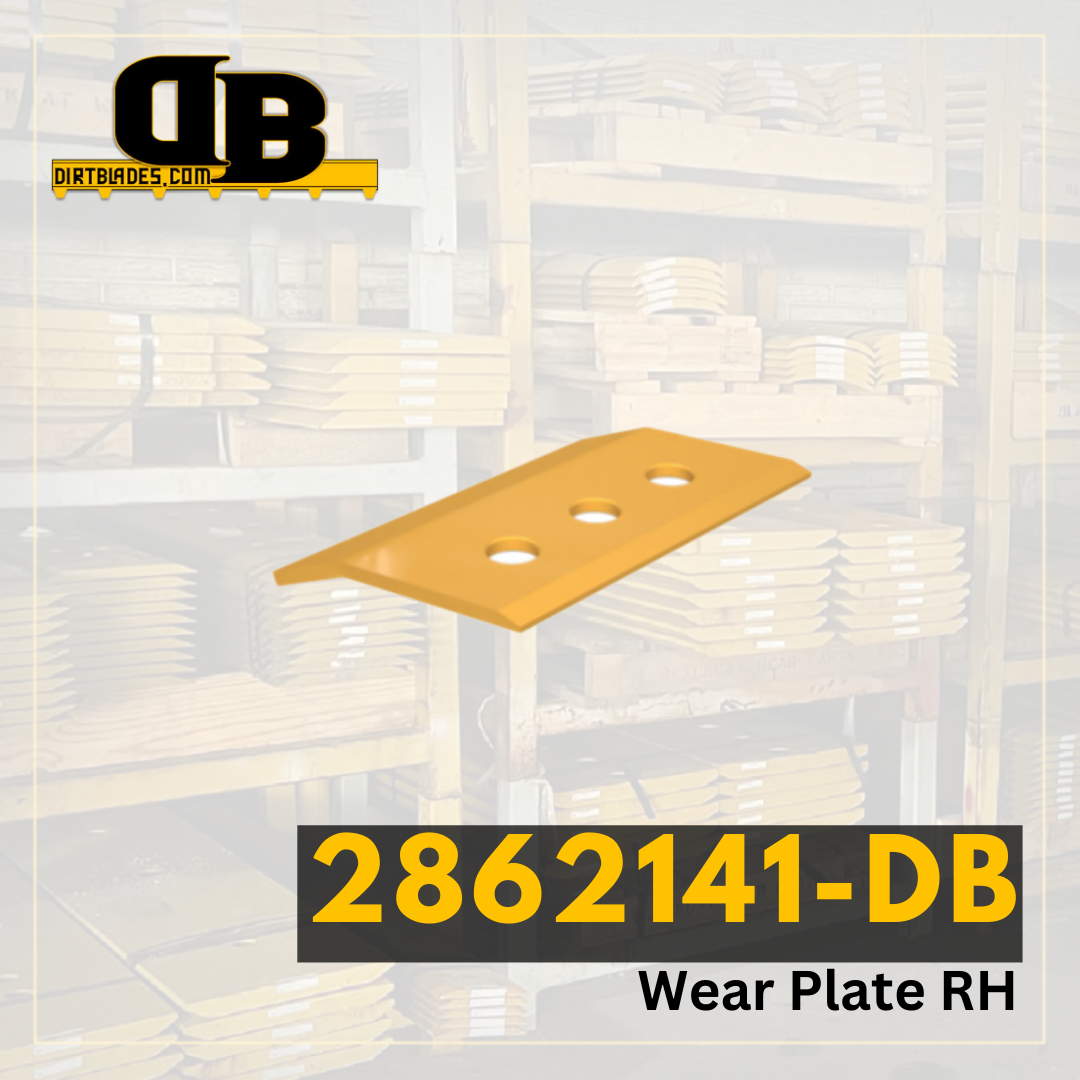

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
Model Number | 980 |
---|---|
Series Number | F G H |
Configuration | Spade Nose Rock |
Serial Number | 1352959 1369033 1133254 1851569 1875298 1875322 |
Blade Position | Top Plate for Half Arrow RH |
Blade Thickness | 1 |
Blade Width | 8 |
Blade Length | 14.858 |
Hole Quantity | 3 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 4.531 |
Second Hole Distance From First Hole in Inches | 3.346 |
Third Hole Distance From Second Hole in Inches | 3.346 |
Bolt Quantity for First Row of Holes | 3 |
Bolt Length for First Row of Holes | 5 |
Bolt Quantity for Second Row of Holes | |
Bolt Length for Second Row of Holes | |
Second Set of Holes First Hole Distance From End | |
Second Set of Holes Second Hole Distance From First Hole | |
Second Set of Holes Third Hole Distance From Second Hole |
