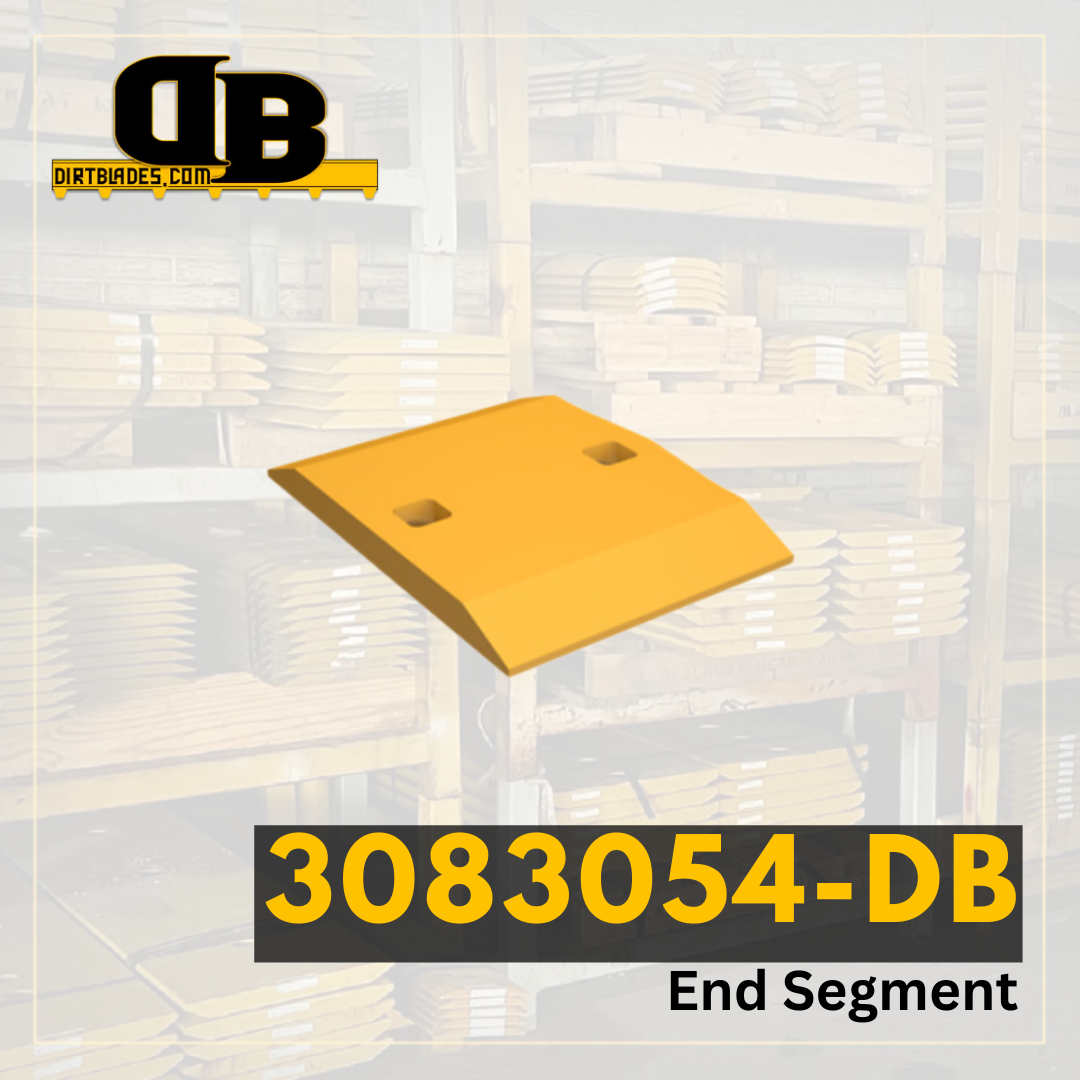

1.18" X 14.17" X 10.625" END SEGMENT
| Model Number | 966 |
|---|---|
| Series Number | H |
| Configuration | Corner Guard System, Material Handling |
| Serial Number | 2843928 |
| Blade Position | End Segment |
| Blade Thickness | 1.18 |
| Blade Width | 14.17 |
| Blade Length | 10.625 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 1.75 |
| Second Hole Distance From First Hole in Inches | 7.125 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
