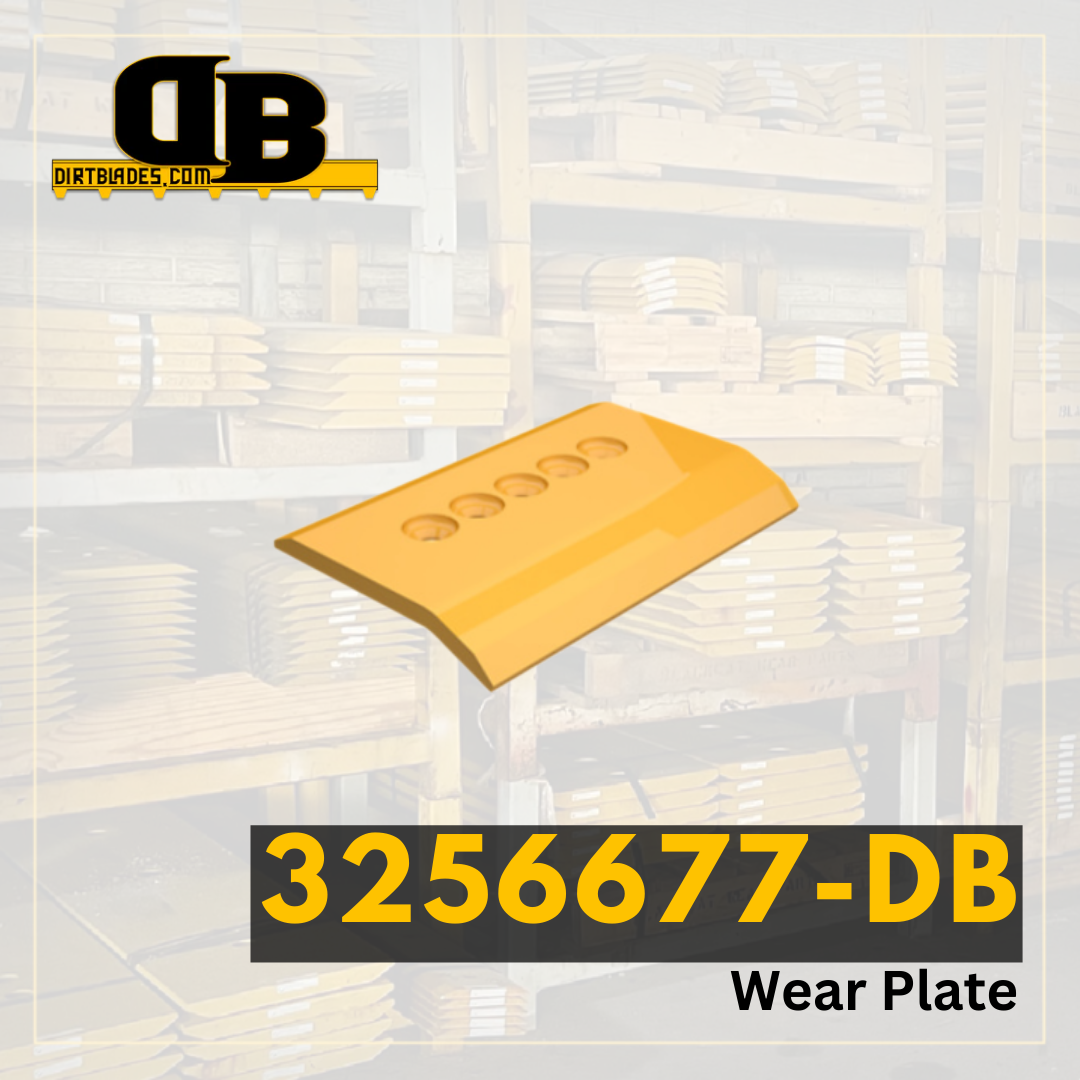

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | TD-24 TD-25 |
|---|---|
| Series Number | '- B |
| Configuration | |
| Serial Number | 24G 25G 25G-2 25G-3 |
| Blade Position | Center |
| Blade Thickness | 1 |
| Blade Width | 10 |
| Blade Length | 114 |
| Hole Quantity | 19 |
| Bolt Diameter | 0.875 |
| First Hole Distance From End in Inches | 3 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 19 |
| Bolt Length for First Row of Holes | 3.5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
