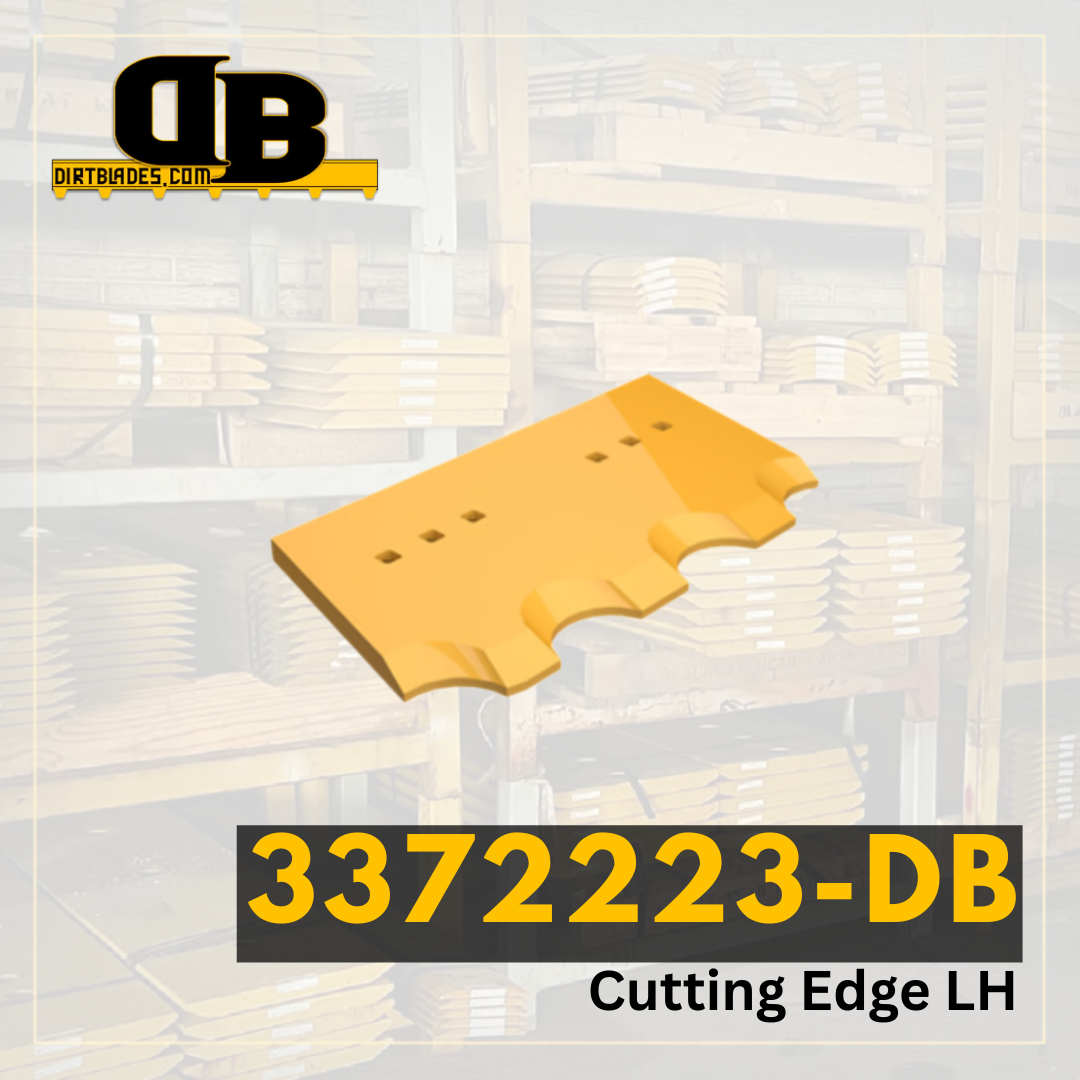

1.752" X 22.244" X 46.461" LH SERR
| Model Number | 990 |
|---|---|
| Series Number | |
| Configuration | Spade Nose Rock, Heavy Duty Quarry |
| Serial Number | 1515979 2100272 2658289 2673551 2949491 3230091 |
| Blade Position | Center LH Serrated |
| Blade Thickness | 1.752 |
| Blade Width | 22.244 |
| Blade Length | 46.461 |
| Hole Quantity | 8 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 4.244 |
| Second Hole Distance From First Hole in Inches | 3.937 |
| Third Hole Distance From Second Hole in Inches | 3.937 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
