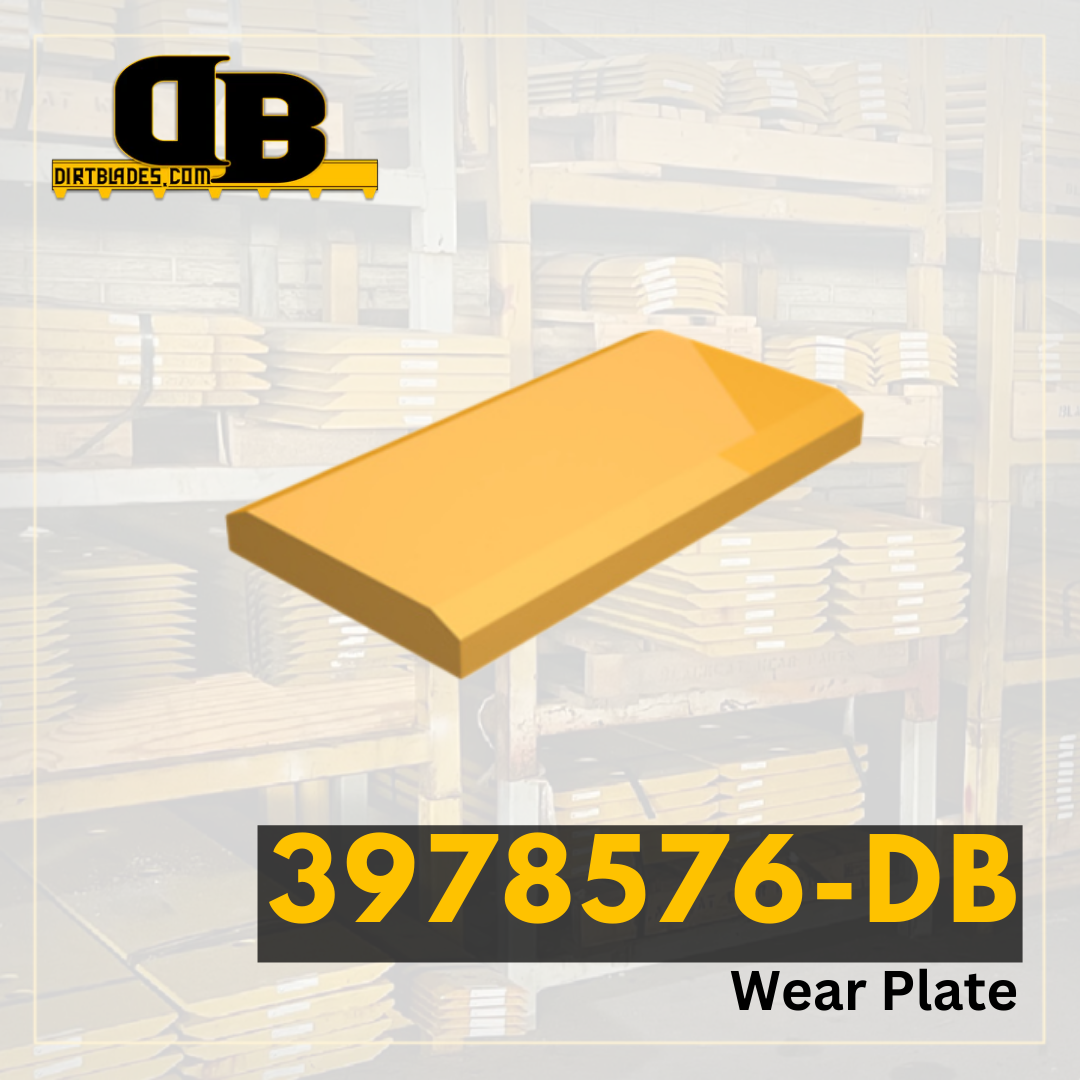

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 95Z |
|---|---|
| Series Number | III IV |
| Configuration | General Purpose |
| Serial Number | 135.8" BUCKET |
| Blade Position | End |
| Blade Thickness | 1.375 |
| Blade Width | 20.92 |
| Blade Length | 11 |
| Hole Quantity | 3 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 8 |
| Second Hole Distance From First Hole in Inches | 2.46 |
| Third Hole Distance From Second Hole in Inches | 2.46 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 4 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
