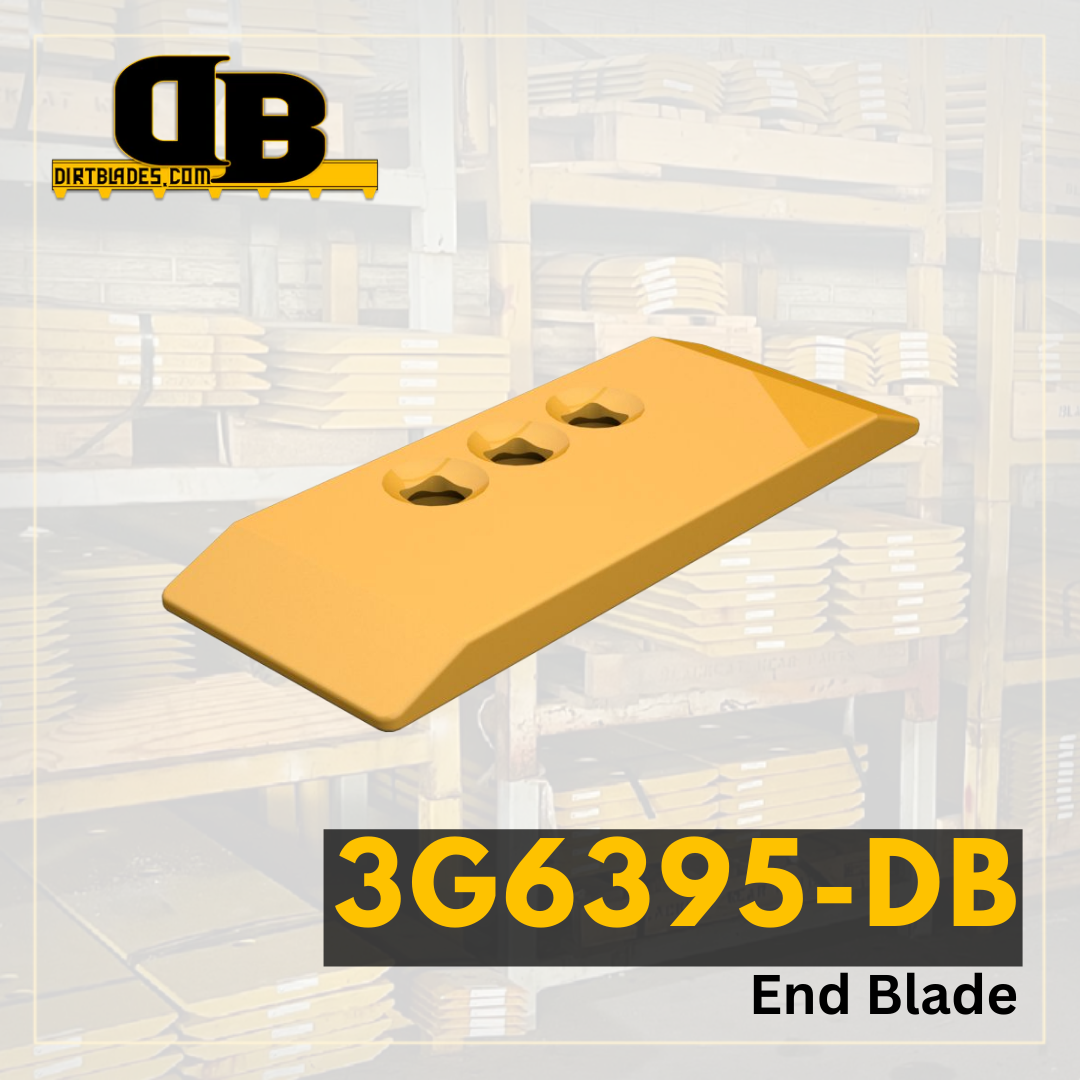

3G6395-DB | End Blade

SKU: 3G6395
Regular price $146.72

Protect your bucket's lip with precision-manufactured OEM quality cutting edges. Our Ground Engaging Tools (GET) provide superior protection and increased versatility. Made of steel that maintains hardness for long wear life, always choose OEM quality GET to safeguard your investment.

Model Number 960
Series Number F
Configuration Corner Guard System, Material Handling
Serial Number 7I3106 1052956 1070582
Blade Position End
Blade Thickness 1.375
Blade Width 20.252
Blade Length 8
Hole Quantity 3
Bolt Diameter 1.25
First Hole Distance From End in Inches 7.125
Second Hole Distance From First Hole in Inches 3
Third Hole Distance From Second Hole in Inches 3
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
