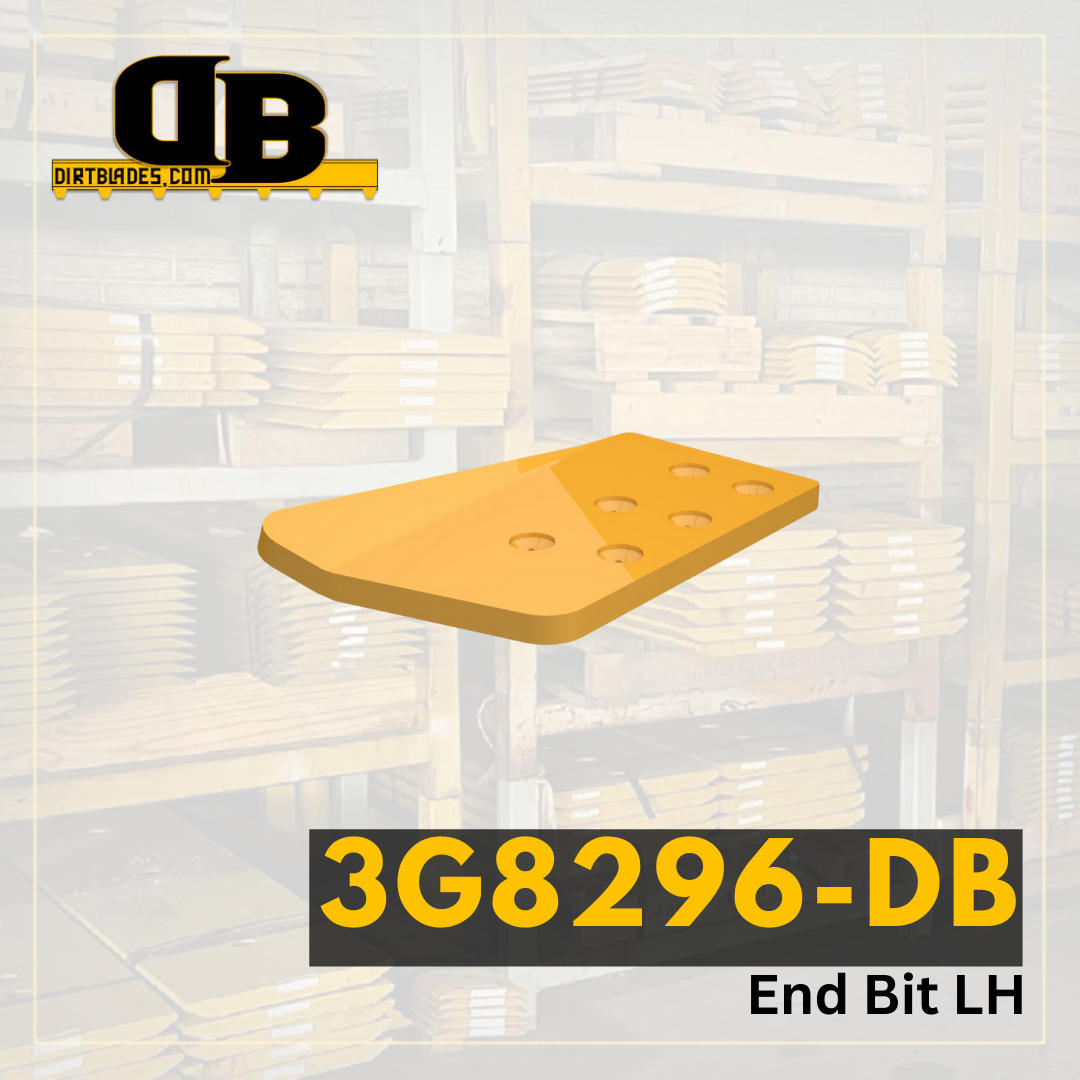

3G8296-DB | End Bit LH

SKU: 3G8296
Regular price $87.84

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number D5
Series Number
Configuration Angle
Serial Number 91H 96H 42K
Blade Position Hot Cup End Bit LH
Blade Thickness 1
Blade Width 10.3
Blade Length 15.44
Hole Quantity 6
Bolt Diameter 0.625
First Hole Distance From End in Inches 2
Second Hole Distance From First Hole in Inches 3.5
Third Hole Distance From Second Hole in Inches 3.5
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 3
Bolt Length for Second Row of Holes 2.25
Second Set of Holes First Hole Distance From End 2
Second Set of Holes Second Hole Distance From First Hole 4
Second Set of Holes Third Hole Distance From Second Hole 4
