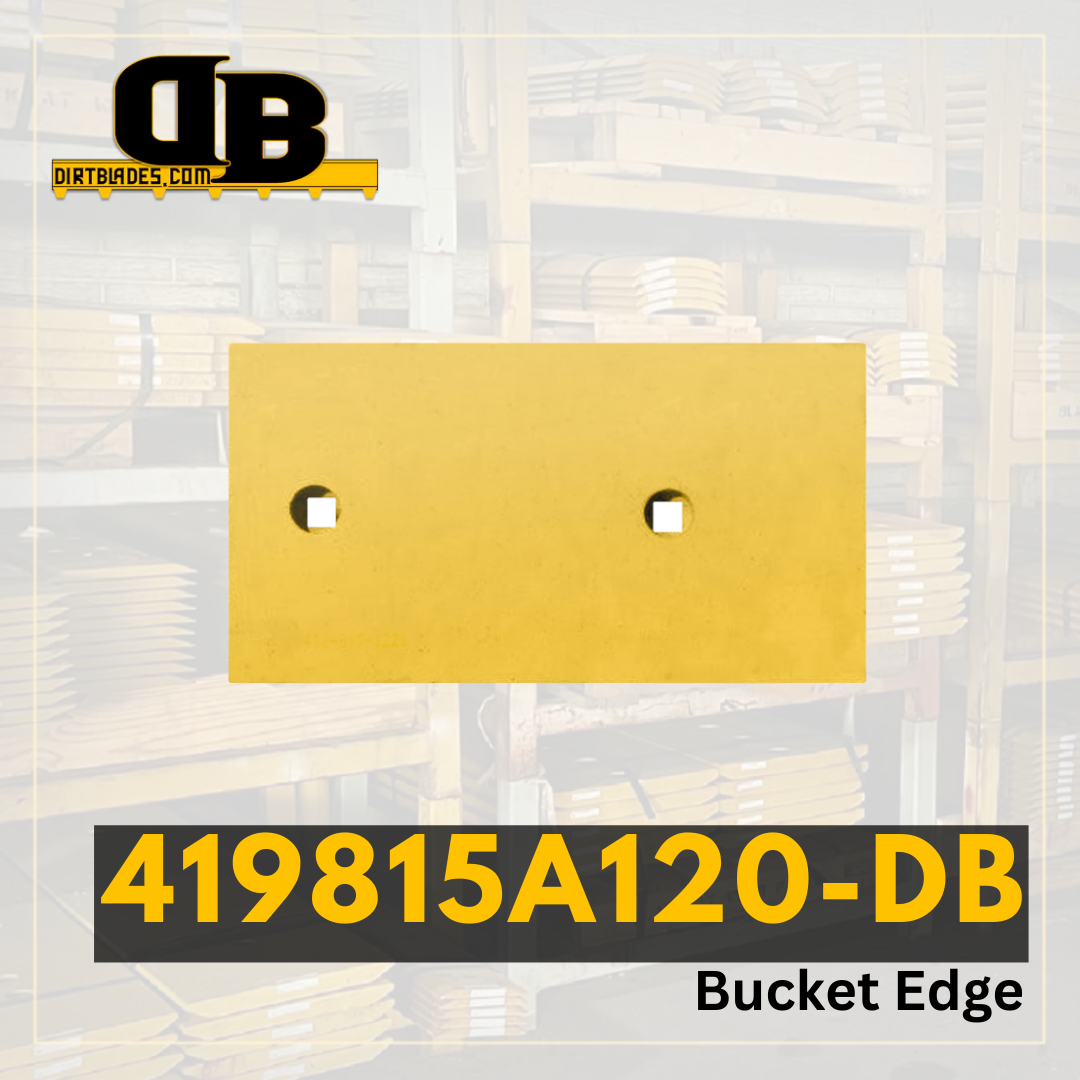

419815A120-DB | Bucket Edge
Regular price
$227.49
Couldn't load pickup availability
Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | 525 |
|---|---|
| Series | |
| Configuration | General Purpose, Excavating, Light Material |
| Serial Number | |
| Blade Position | End |
| Blade Thickness | 1.25 |
| Blade Width | 13 |
| Blade Length | 23.219 |
| Hole Quantity | 2 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 3.25 |
| Second Hole Distance From First Hole in Inches | 12.719 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 3.5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
