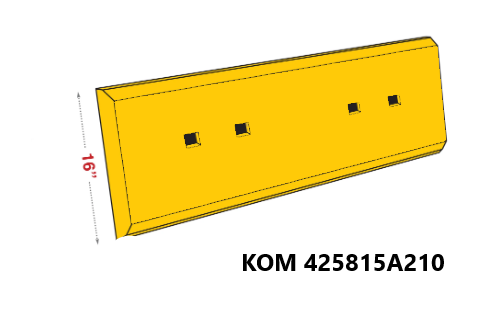

Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | 910 |
|---|---|
| Series Number | |
| Configuration | General Purpose |
| Serial Number | 5G4088 5G3080 5G6180 |
| Blade Position | Base Edge For Bolt-on Edges or Teeth |
| Blade Thickness | 0.75 |
| Blade Width | 7.5 |
| Blade Length | 84.66 |
| Hole Quantity | 14 |
| Bolt Diameter | 0.813 |
| First Hole Distance From End in Inches | 2.28 |
| Second Hole Distance From First Hole in Inches | 11.13 |
| Third Hole Distance From Second Hole in Inches | 14.46 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 2.28 |
| Second Set of Holes Second Hole Distance From First Hole | 11.13 |
| Second Set of Holes Third Hole Distance From Second Hole | 14.46 |
