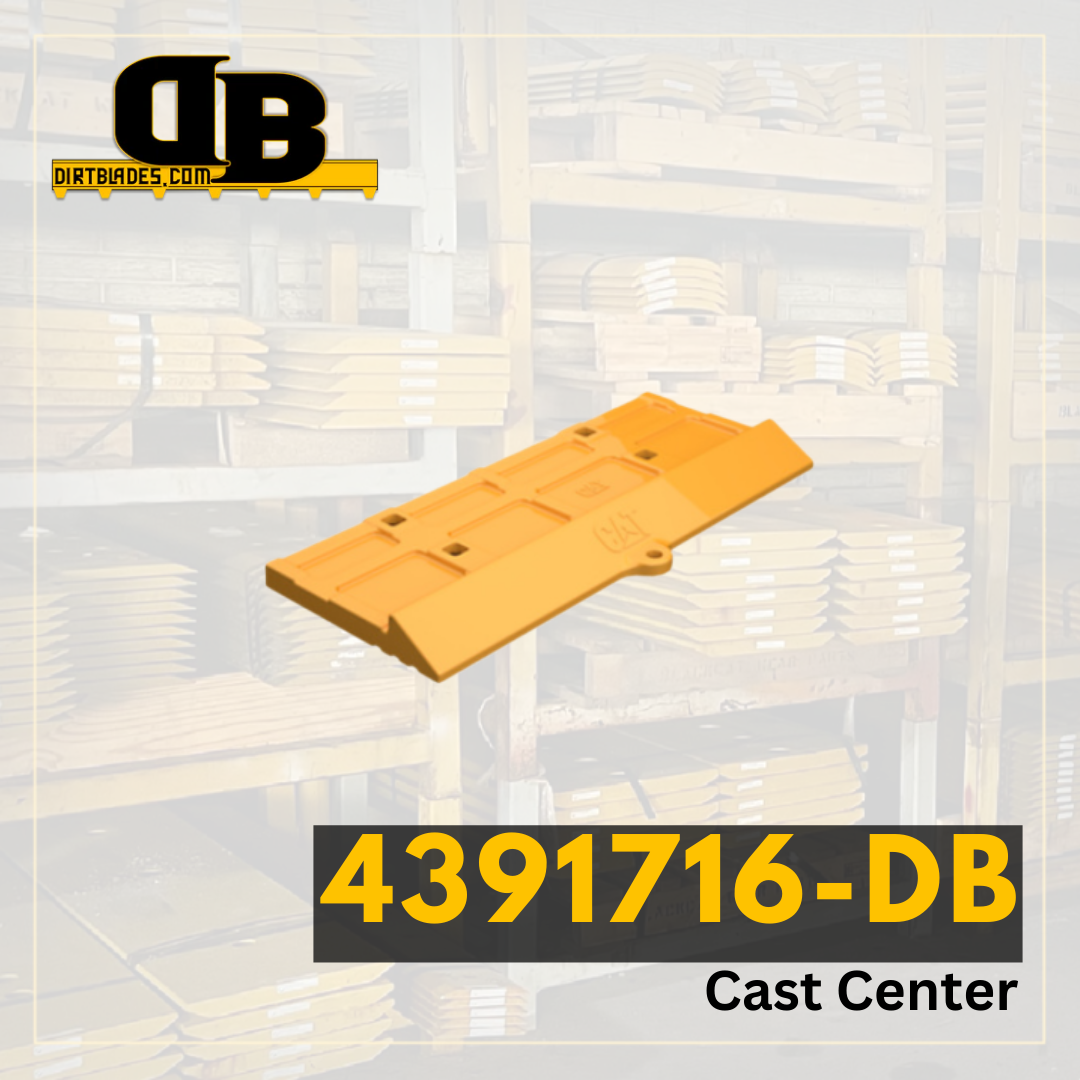

1.75" X 16.75" X 40" CAST CENTER
Model Number | 966 |
---|---|
Series Number | H |
Configuration | Corner Guard System, Material Handling |
Serial Number | 2157633 |
Blade Position | HA Center Cast |
Blade Thickness | 1.75 |
Blade Width | 16.75 |
Blade Length | 40 |
Hole Quantity | 4 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 9.938 |
Second Hole Distance From First Hole in Inches | 20.125 |
Third Hole Distance From Second Hole in Inches | 0 |
Bolt Quantity for First Row of Holes | 2 |
Bolt Length for First Row of Holes | 4.125 |
Bolt Quantity for Second Row of Holes | 2 |
Bolt Length for Second Row of Holes | 4.125 |
Second Set of Holes First Hole Distance From End | 9.938 |
Second Set of Holes Second Hole Distance From First Hole | 20.125 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
