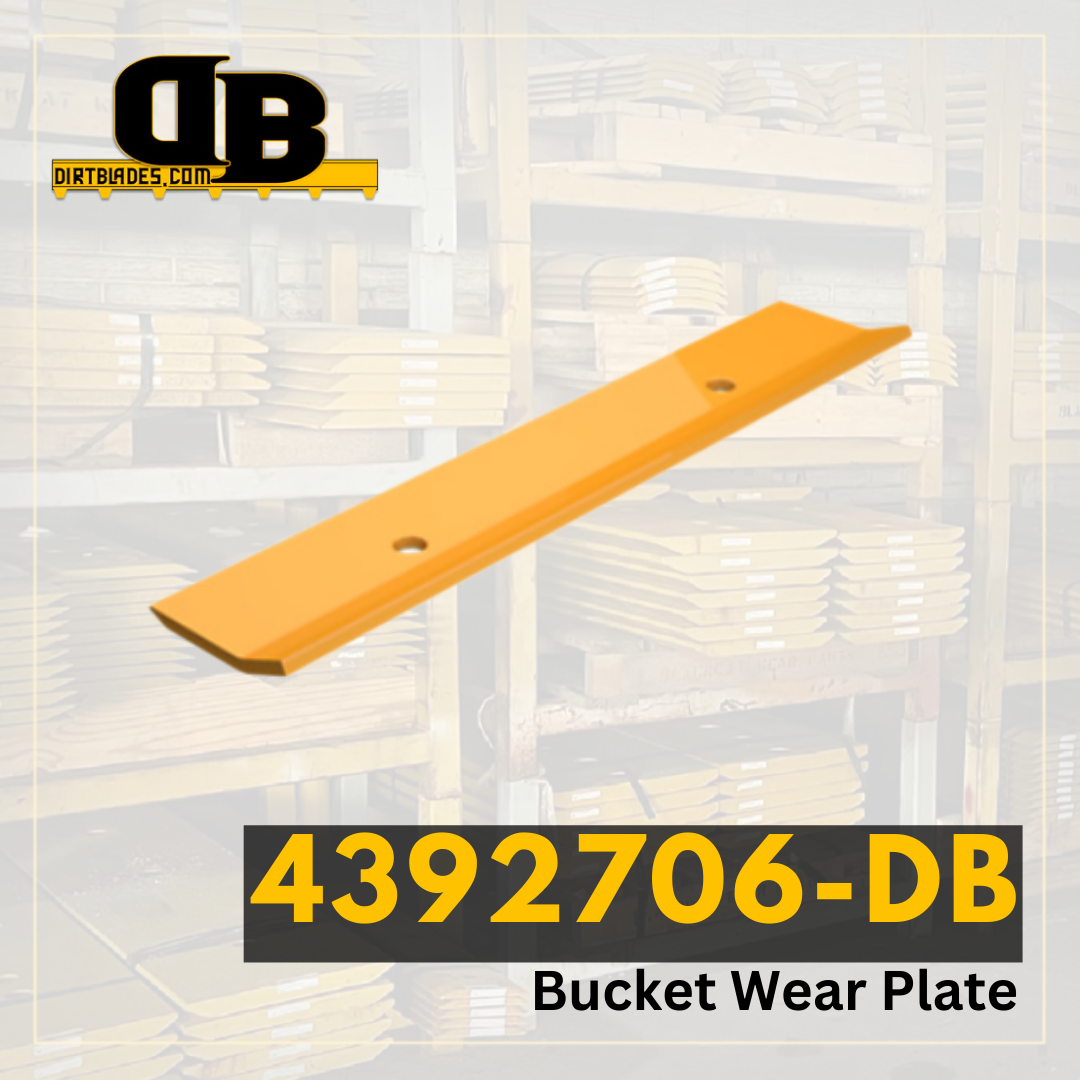

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | 966 |
|---|---|
| Series Number | H |
| Configuration | Corner Guard System, Material Handling |
| Serial Number | 2157633 |
| Blade Position | Top Plate for Half Arrow Center |
| Blade Thickness | 0.625 |
| Blade Width | 8 |
| Blade Length | 39.99 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 9.935 |
| Second Hole Distance From First Hole in Inches | 20.12 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
