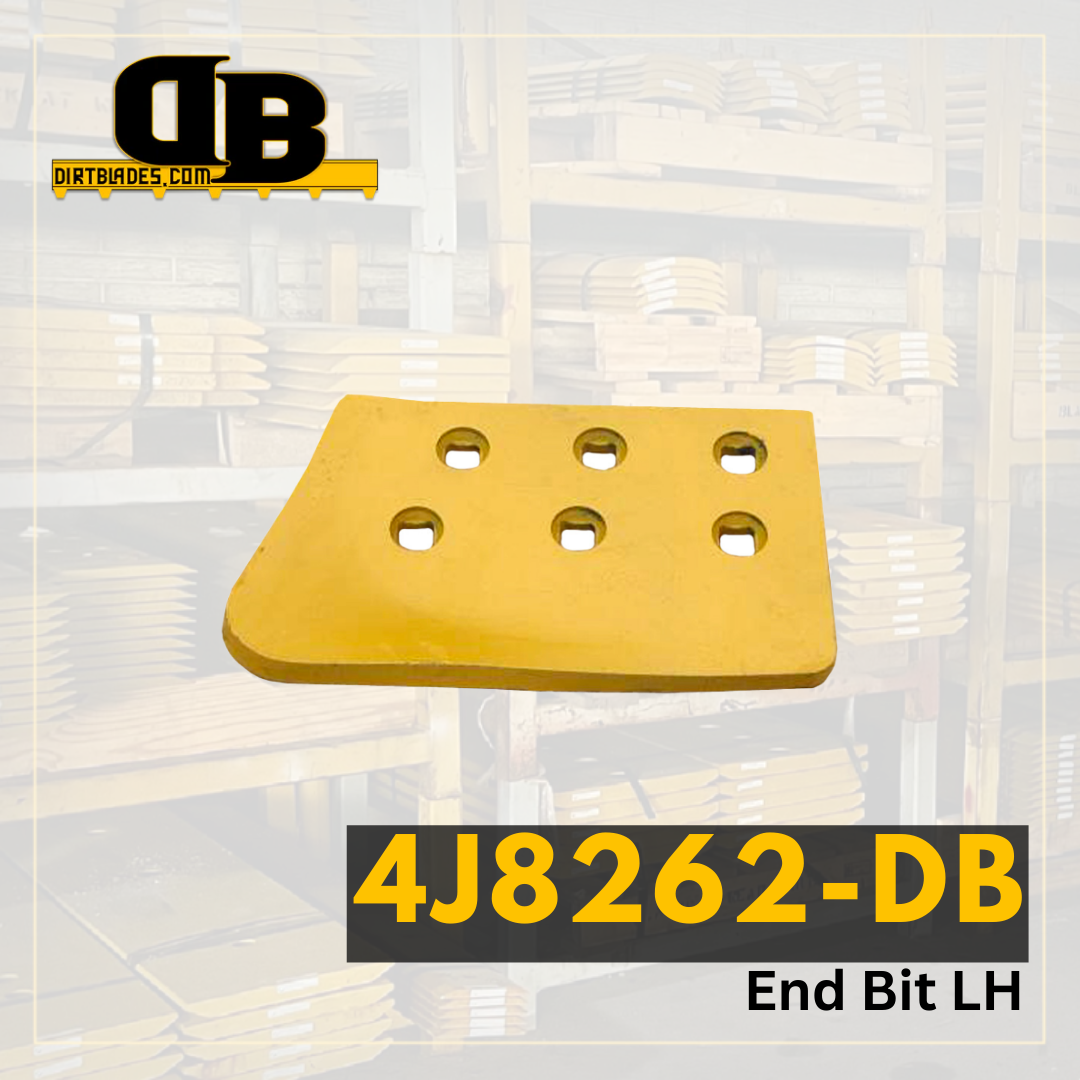

4J8262 | End Bit LH

SKU: 4J8262

Call for pricing - 870-536-0402

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number HL740-7
Series Number
Configuration
Serial Number 100.5" 1.8M, 2.1M BUCKETS
Blade Position Base Edge
Blade Thickness 1
Blade Width 9.843
Blade Length 100.394
Hole Quantity 18
Bolt Diameter 0.866
First Hole Distance From End in Inches 2.594
Second Hole Distance From First Hole in Inches 3.902
Third Hole Distance From Second Hole in Inches 11.417
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 2.594
Second Set of Holes Second Hole Distance From First Hole 15.319
Second Set of Holes Third Hole Distance From Second Hole 16.142
