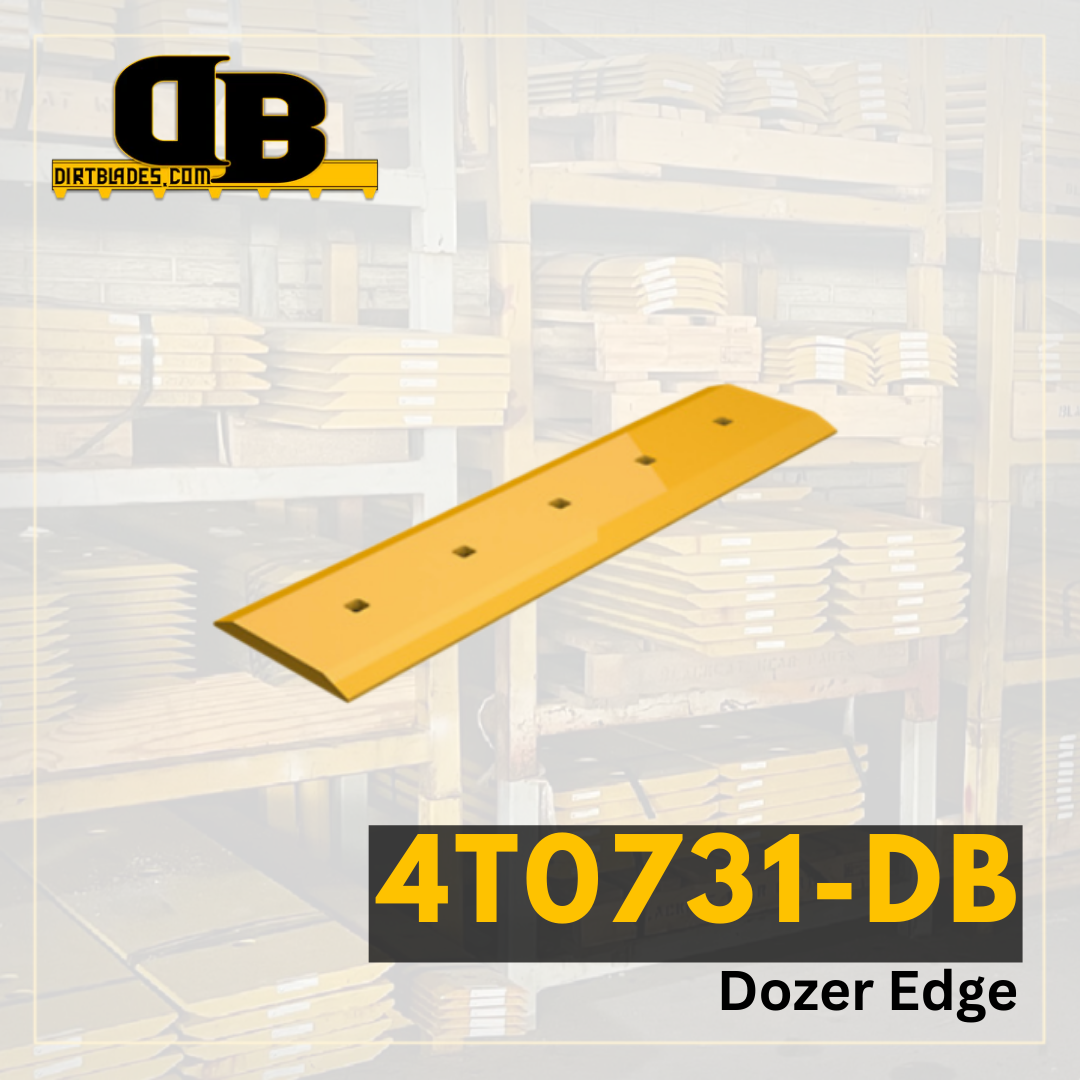

4T0731-DB | Dozer Edge

SKU: 4T0731
Regular price $109.38

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D5
Series Number H
Configuration Petroleum Field Blade
Serial Number 4AH
Blade Position Center
Blade Thickness 0.75
Blade Width 8
Blade Length 32.125
Hole Quantity 5
Bolt Diameter 0.75
First Hole Distance From End in Inches 4.063
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
