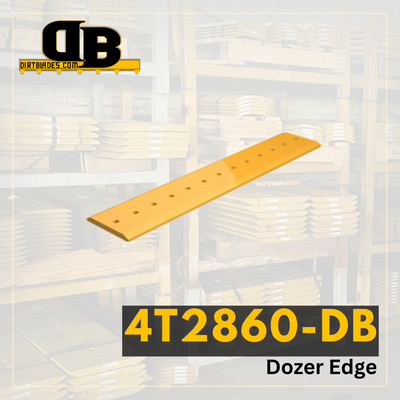

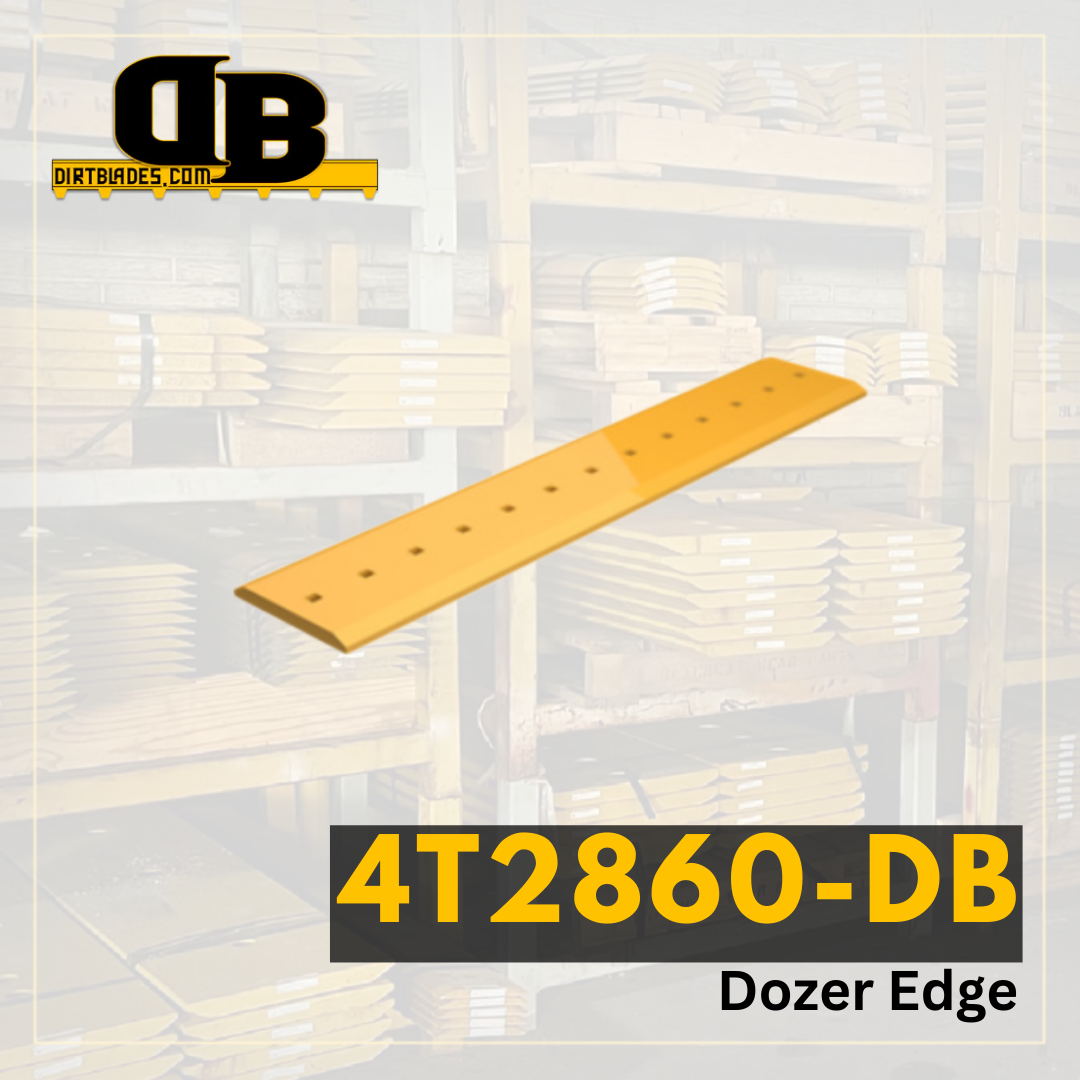

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | TD-7 |
|---|---|
| Series Number | C E G |
| Configuration | Inside Arm |
| Serial Number | |
| Blade Position | Level Cut End Bit RH |
| Blade Thickness | 0.625 |
| Blade Width | 6 |
| Blade Length | 15 |
| Hole Quantity | 3 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 3 |
| Second Hole Distance From First Hole in Inches | 4.125 |
| Third Hole Distance From Second Hole in Inches | 4.125 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
