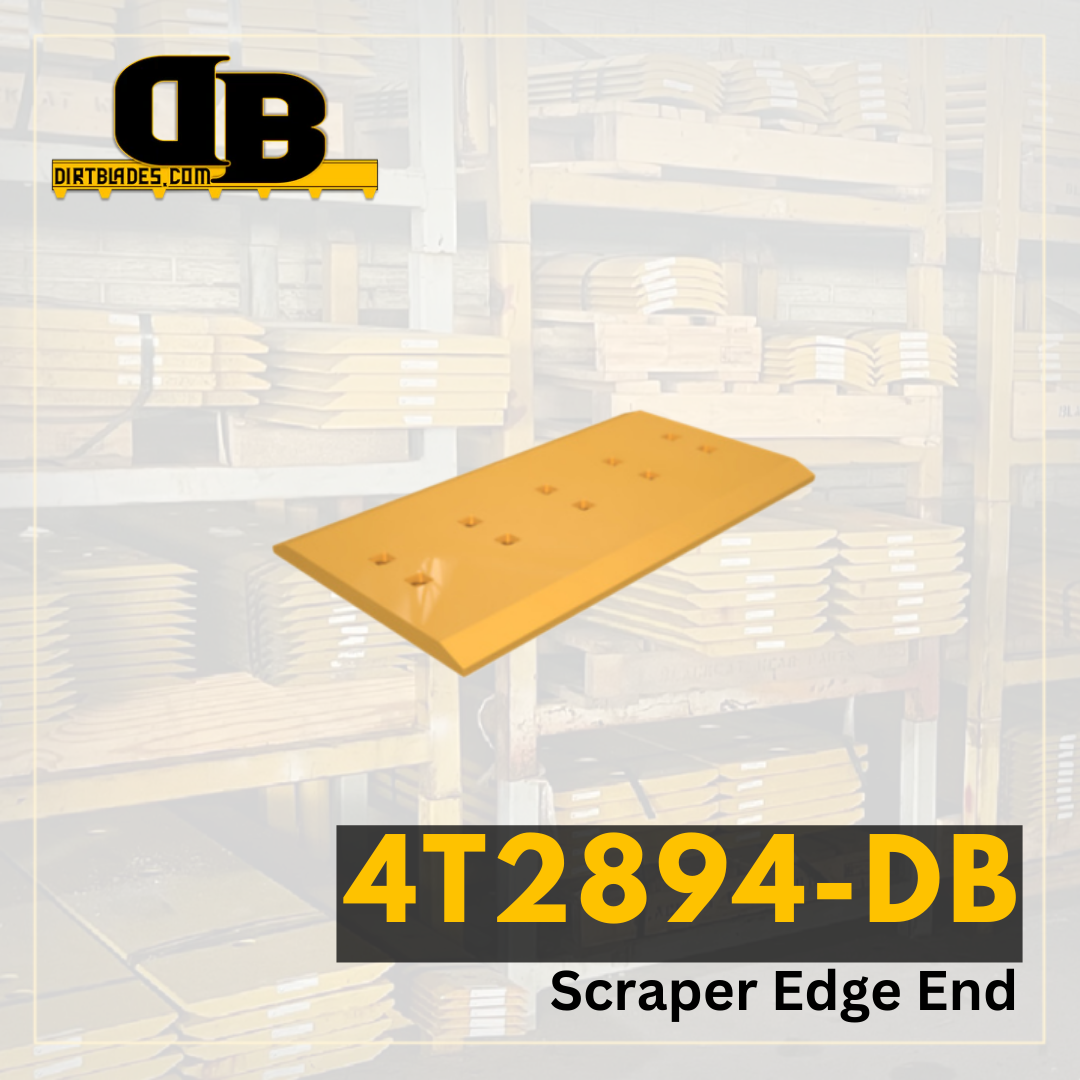

4T2894-DB | Scraper Edge End

SKU: 4T2894
Regular price $242.52

Protect your bucket's lip with precision-manufactured OEM quality scraper blades. Our Ground Engaging Tools (GET) provide superior protection and increased versatility. Made of steel that maintains hardness for long wear life, always choose OEM quality GET to safeguard your investment.

Model Number 428 435 442
Series Number
Configuration
Serial Number 33F 35E 43D 44D 45D 83E 85F 88F
Blade Position HD Wider Level Cut End
Blade Thickness 1.125
Blade Width 16
Blade Length 29.5
Hole Quantity 10
Bolt Diameter 1
First Hole Distance From End in Inches 2.75
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 2.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 2.75
Second Set of Holes Second Hole Distance From First Hole 6
Second Set of Holes Third Hole Distance From Second Hole 6
