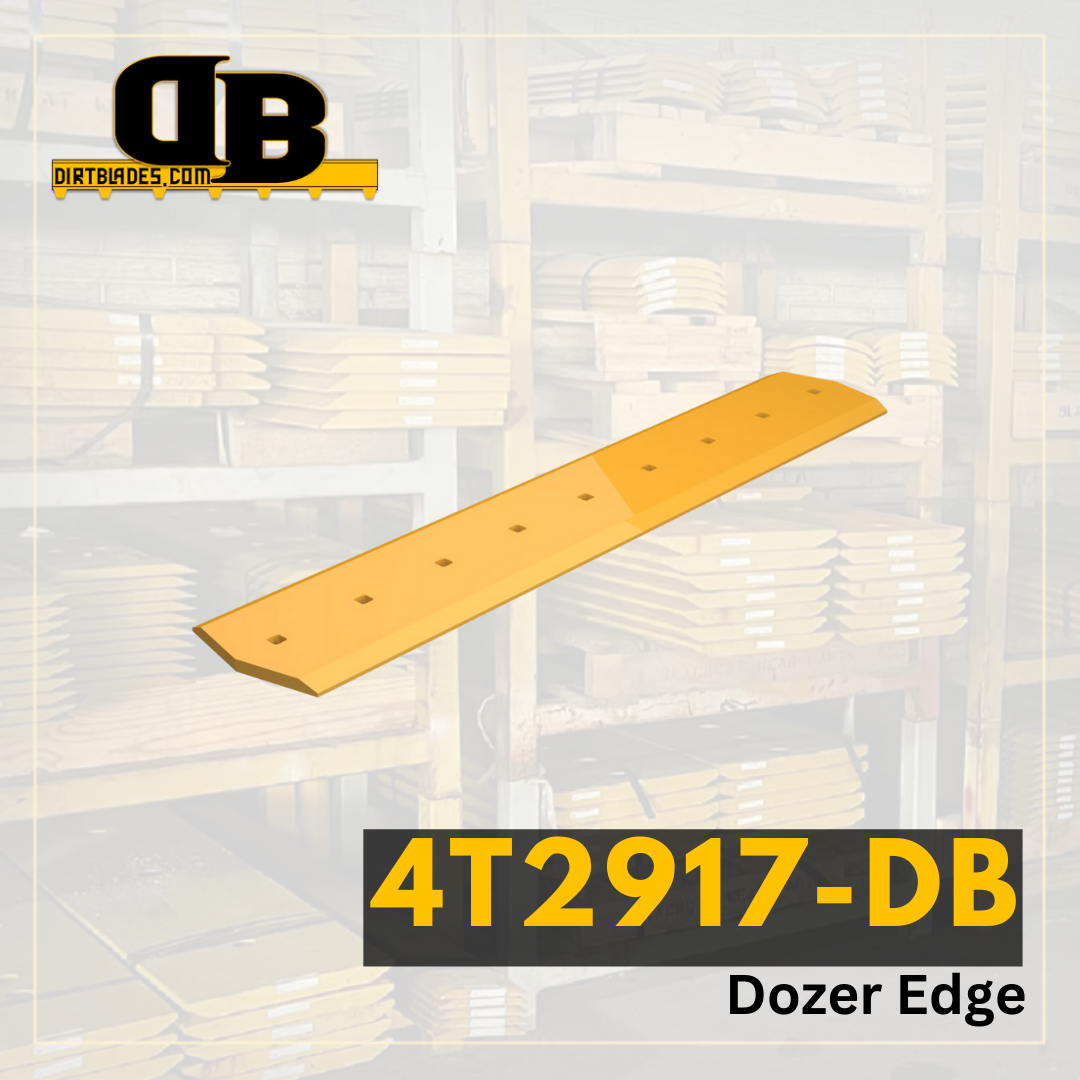

4T2917-DB | Dozer Edge

SKU: 4T2917
Regular price $208.01

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D7
Series Number G
Configuration Full-U
Serial Number 85D 61K 94R
Blade Position Center
Blade Thickness 0.75
Blade Width 10
Blade Length 53.375
Hole Quantity 9
Bolt Diameter 0.875
First Hole Distance From End in Inches 2.688
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 2.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
