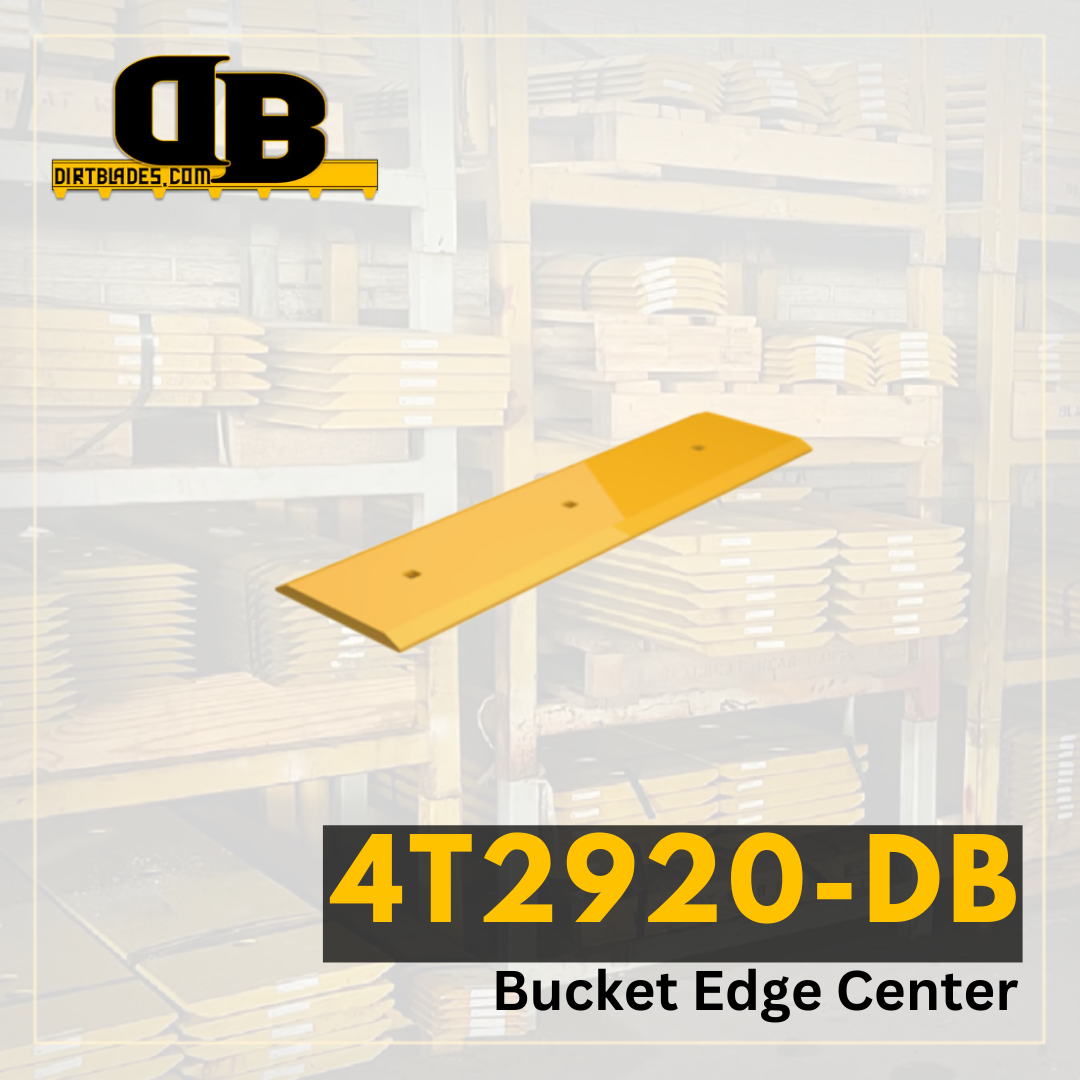

4T2920-DB | Bucket Edge Center

SKU: 4T2920
Regular price $153.57

Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.

Model Number 910
Series Number
Configuration General Purpose
Serial Number 6S6504 6S8657
Blade Position Center
Blade Thickness 0.75
Blade Width 10
Blade Length 38
Hole Quantity 3
Bolt Diameter 0.75
First Hole Distance From End in Inches 6.75
Second Hole Distance From First Hole in Inches 12.25
Third Hole Distance From Second Hole in Inches 12.25
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
