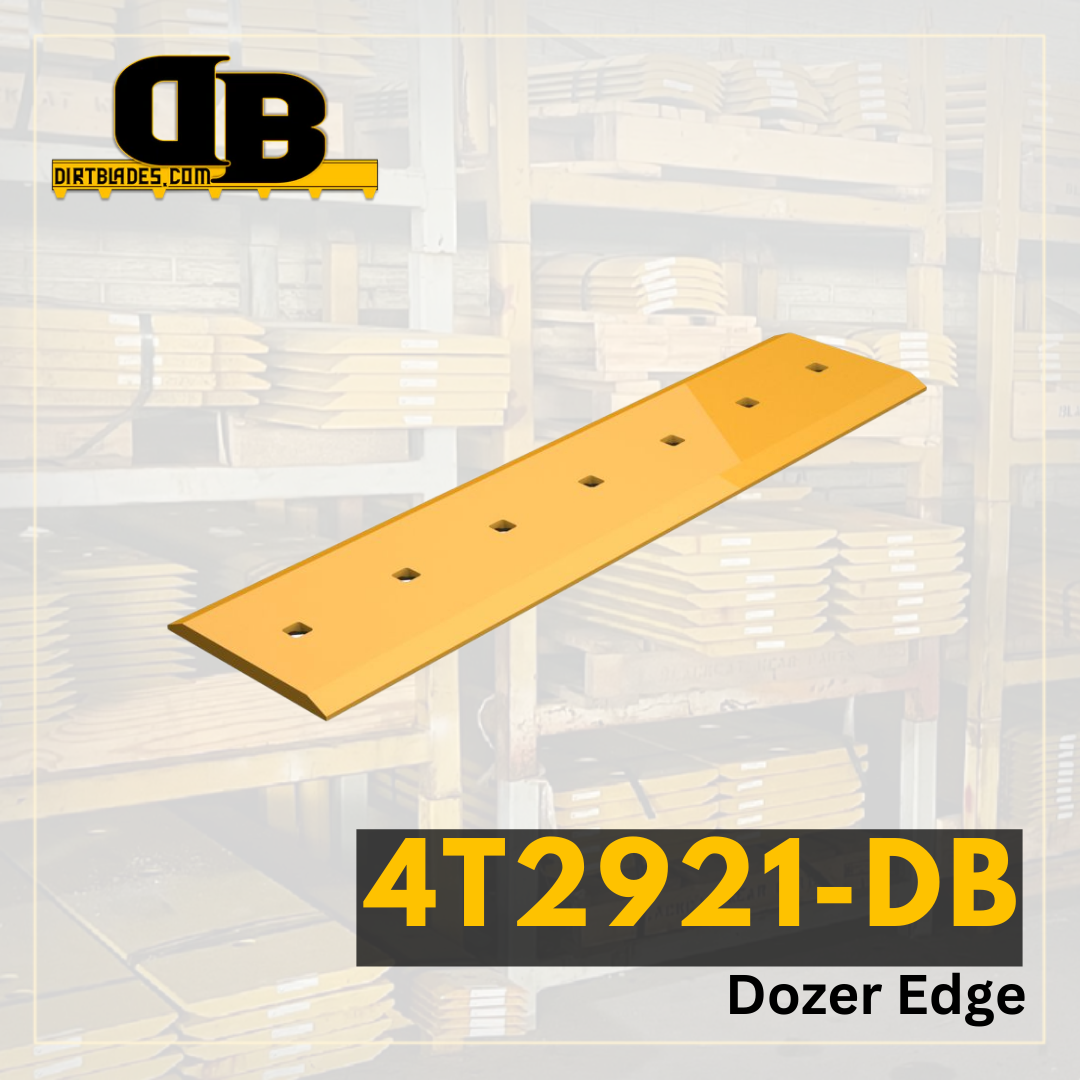

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | TD-9 |
|---|---|
| Series Number | '- B |
| Configuration | |
| Serial Number | 9D SERIES B |
| Blade Position | Level Cut End Bit LH/RH |
| Blade Thickness | 0.75 |
| Blade Width | 8 |
| Blade Length | 23.938 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 2.969 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2.5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
