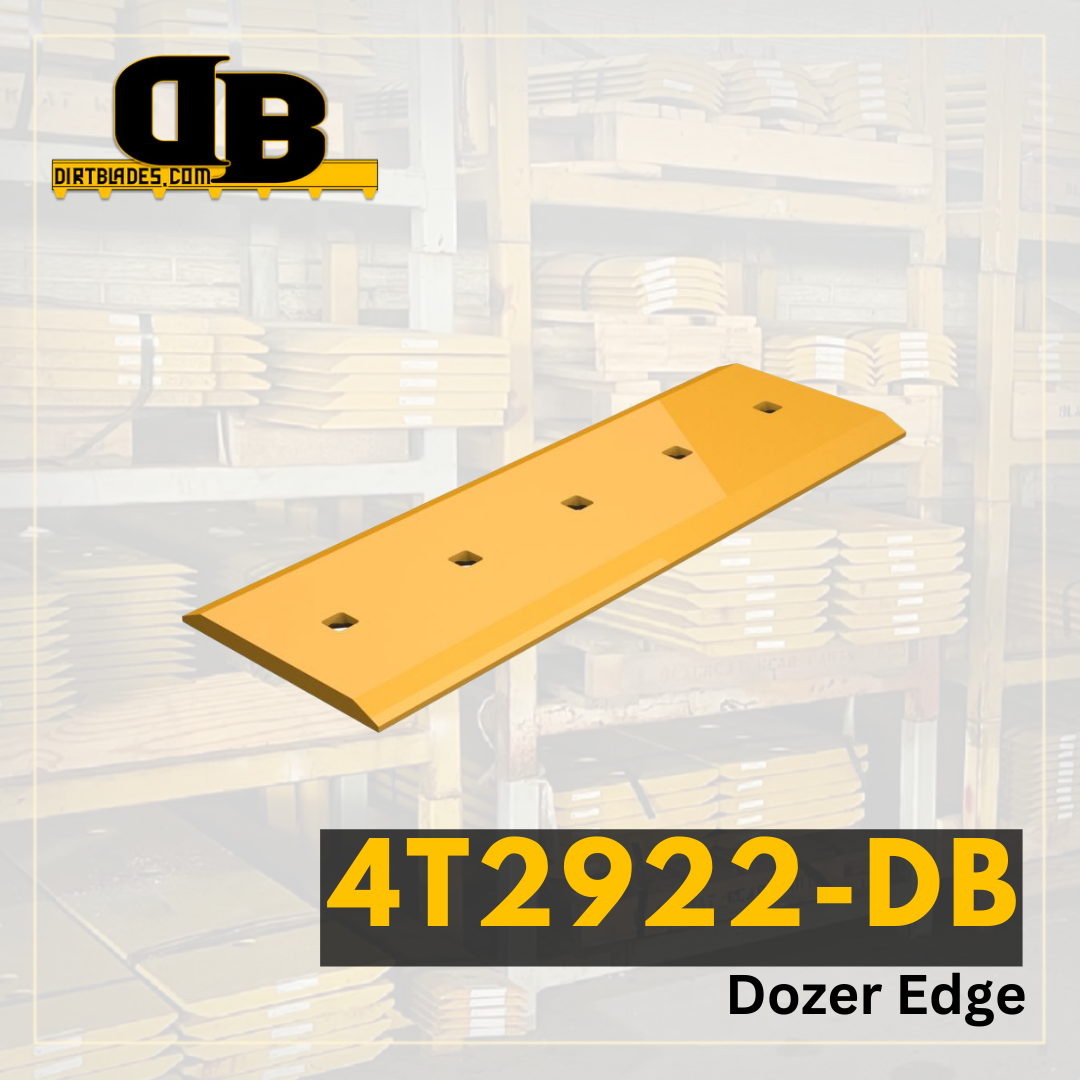

4T2922-DB | Dozer Edge

SKU: 4T2922
Regular price $123.60

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D7
Series Number
Configuration Straight
Serial Number 23F 31F 59F 14H
Blade Position End
Blade Thickness 0.75
Blade Width 10
Blade Length 29.875
Hole Quantity 5
Bolt Diameter 0.875
First Hole Distance From End in Inches 2.688
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 2.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
