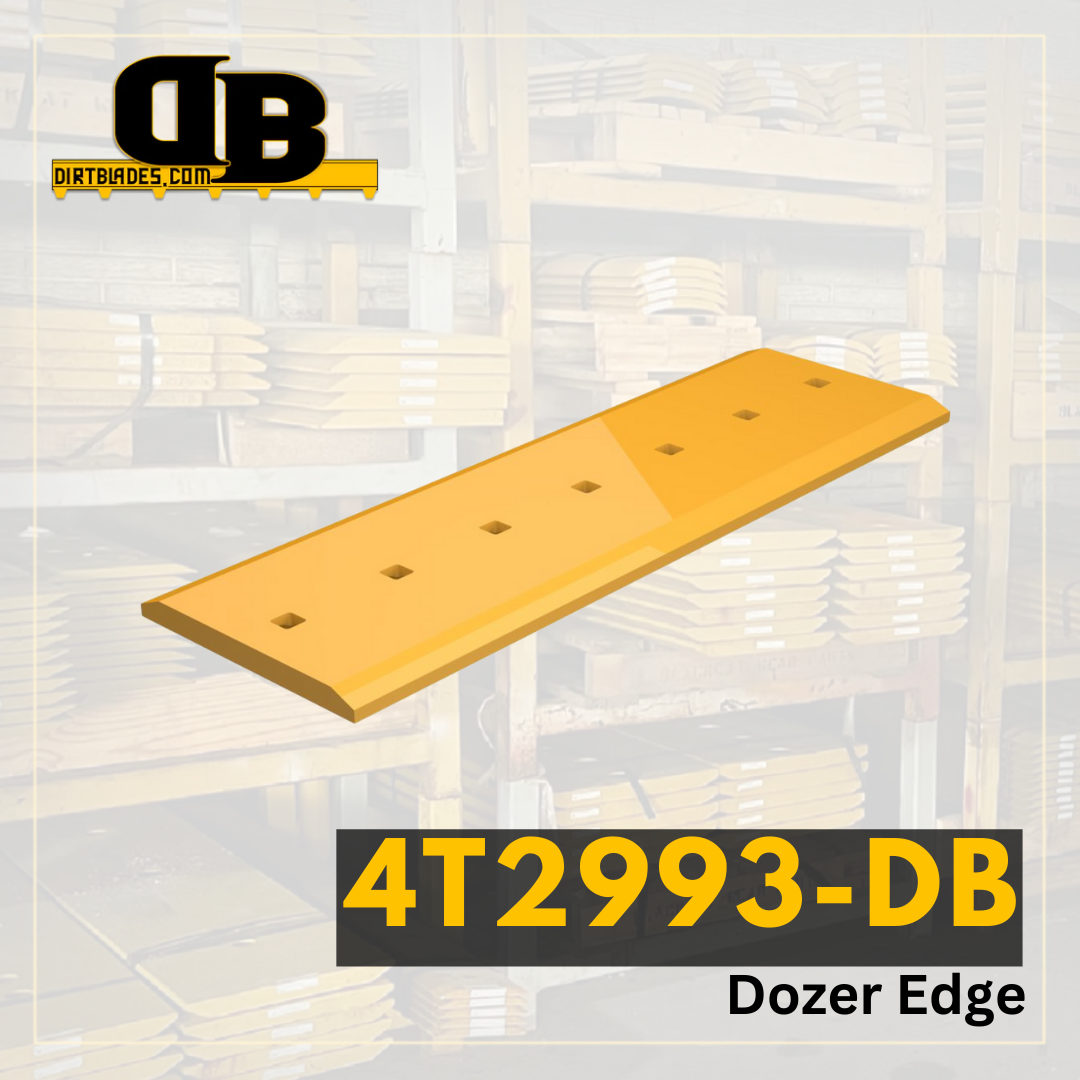

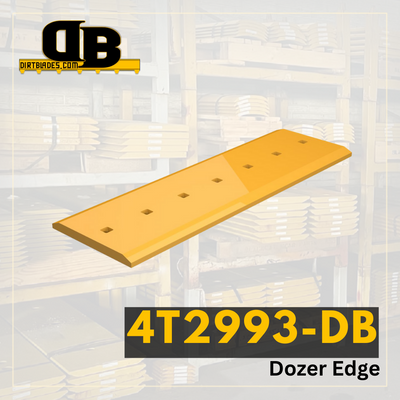

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | TD-20 |
|---|---|
| Series Number | '- B C |
| Configuration | Semi-U |
| Serial Number | |
| Blade Position | Hot Cup End Bit LH |
| Blade Thickness | 1.25 |
| Blade Width | 12 |
| Blade Length | 19.25 |
| Hole Quantity | 7 |
| Bolt Diameter | 0.875 |
| First Hole Distance From End in Inches | 3.625 |
| Second Hole Distance From First Hole in Inches | 4 |
| Third Hole Distance From Second Hole in Inches | 4 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 3 |
| Bolt Quantity for Second Row of Holes | 4 |
| Bolt Length for Second Row of Holes | 3 |
| Second Set of Holes First Hole Distance From End | 3.625 |
| Second Set of Holes Second Hole Distance From First Hole | 3 |
| Second Set of Holes Third Hole Distance From Second Hole | 3 |
