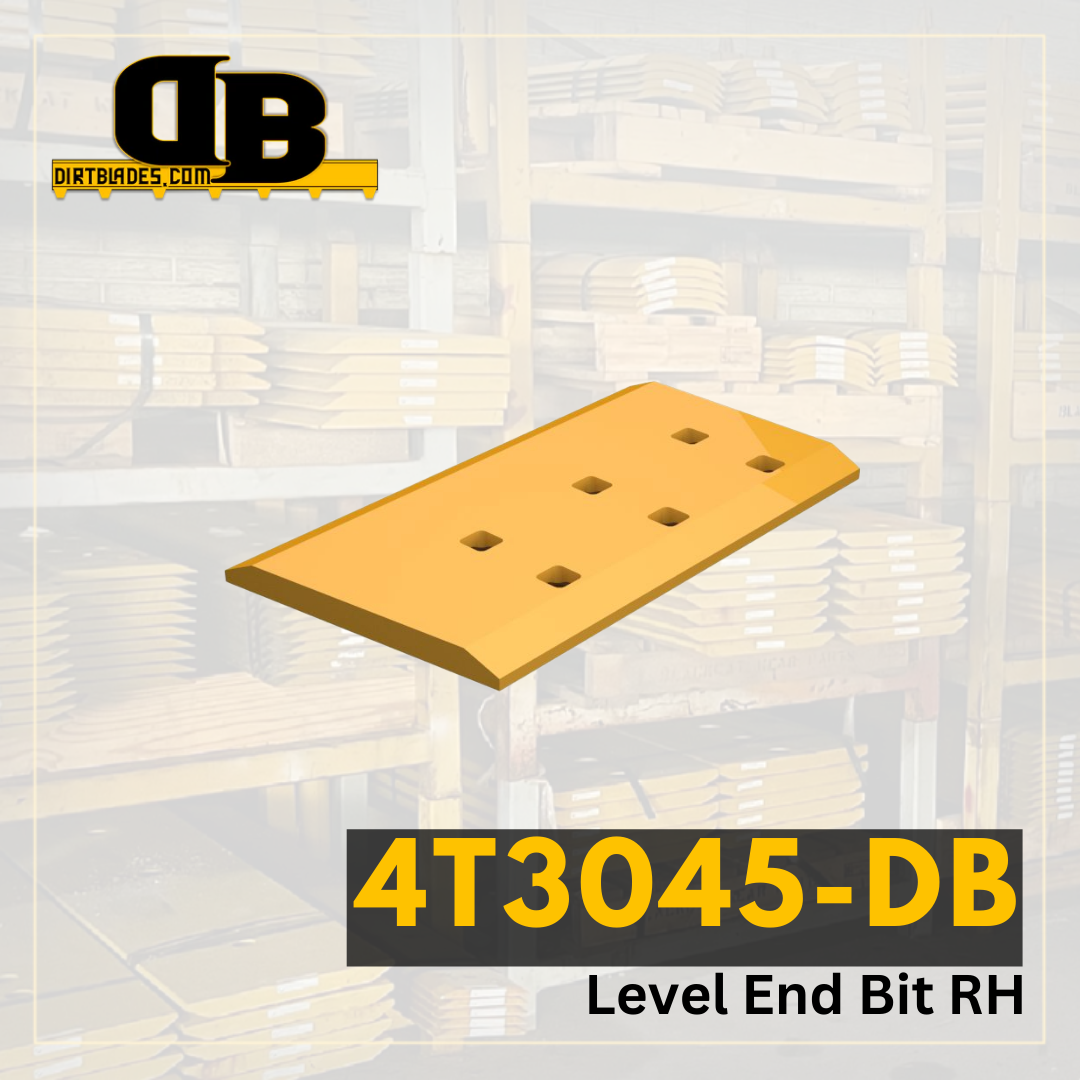

4T3045 | Level End Bit RH

SKU: 4T3045

Call for pricing - 870-536-0402

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number Skid Steer
Series Number
Configuration BUCKET EDGE HT
Serial Number 74"
Blade Position Center
Blade Thickness 0.625
Blade Width 8
Blade Length 74
Hole Quantity 8
Bolt Diameter 0.625
First Hole Distance From End in Inches 2.219
Second Hole Distance From First Hole in Inches 9.938
Third Hole Distance From Second Hole in Inches 9.938
Bolt Quantity for First Row of Holes 8
Bolt Length for First Row of Holes
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
