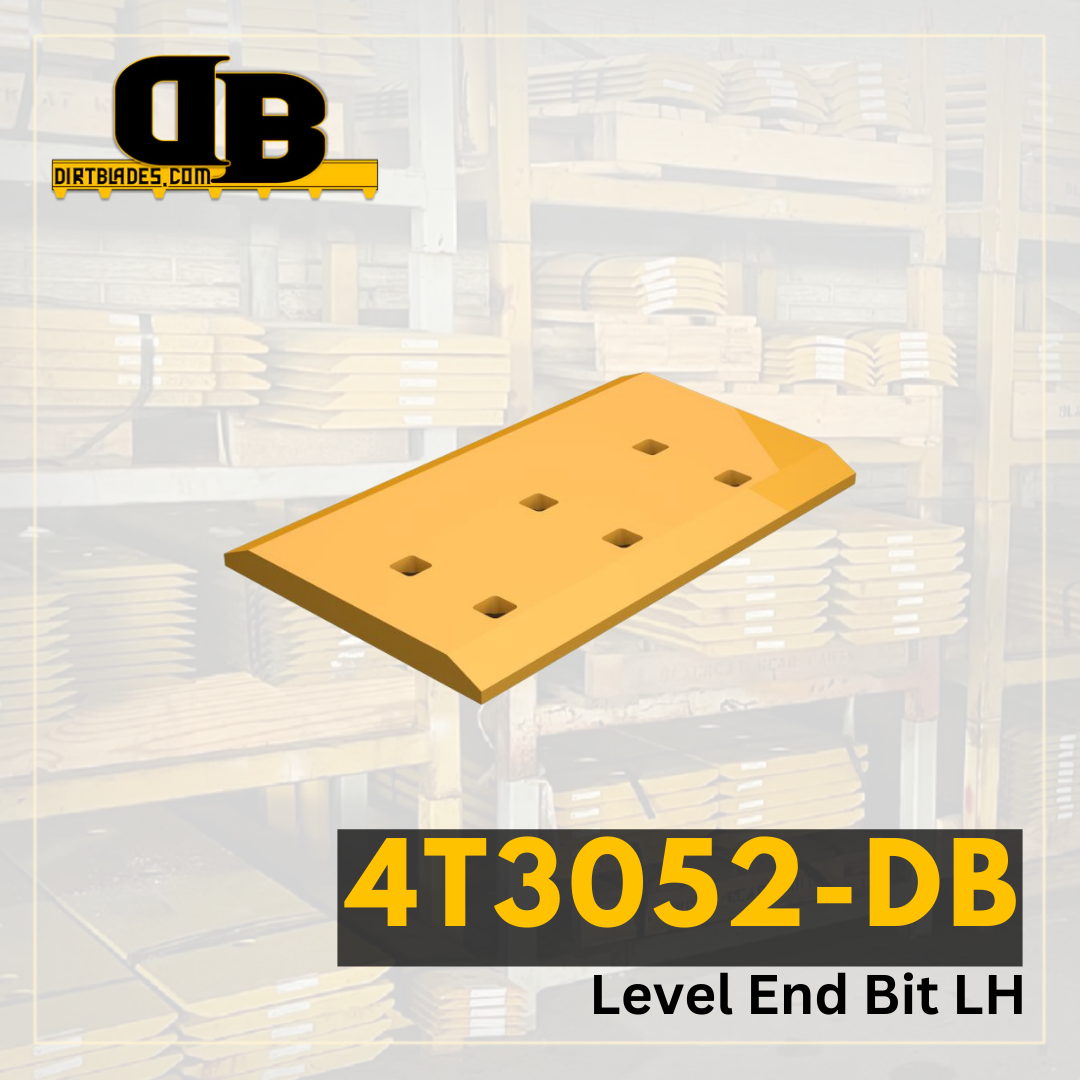

4T3052-DB | Level End Bit LH

SKU: 4T3052
Regular price $53.30

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number D4
Series Number
Configuration Straight
Serial Number 04A 40D
Blade Position Level Cut End Bit LH
Blade Thickness 0.75
Blade Width 8
Blade Length 13.25
Hole Quantity 6
Bolt Diameter 0.625
First Hole Distance From End in Inches 1.875
Second Hole Distance From First Hole in Inches 4
Third Hole Distance From Second Hole in Inches 4
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 3
Bolt Length for Second Row of Holes 2.25
Second Set of Holes First Hole Distance From End 1.875
Second Set of Holes Second Hole Distance From First Hole 4
Second Set of Holes Third Hole Distance From Second Hole 4
