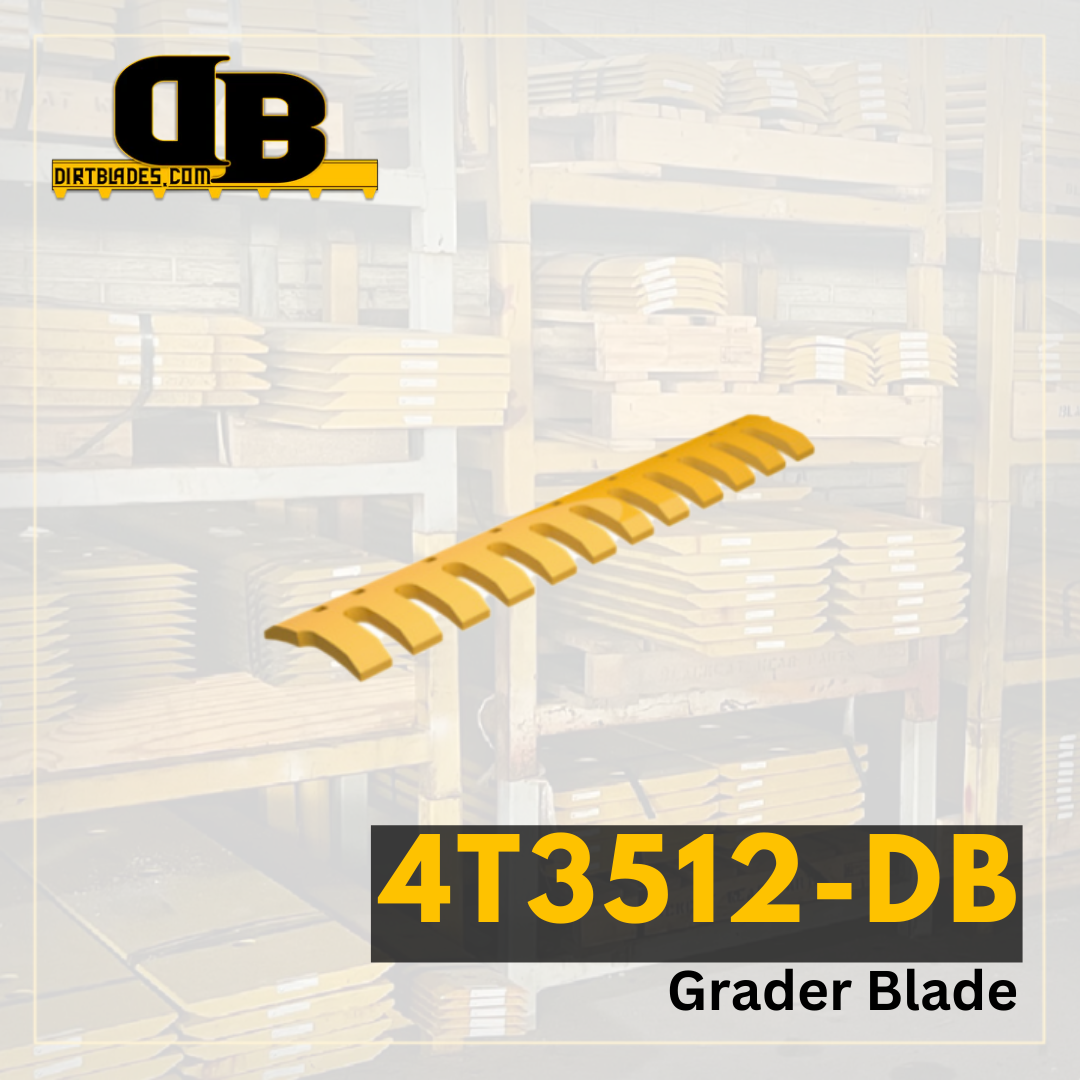

4T3512 | Grader Blade

SKU: 4T3512

Call for pricing - 870-536-0402

The Grader Blade, or the land leveler, is a heavy-duty equipment that's used mostly for smoothing and leveling the ground. It's got a big, flat metal blade that you can adjust to different angles and heights and attach it to a tractor or other heavy machinery. The cool thing is that you can adjust the blade's height and angle to match the job's requirements. The blades are made precisely to last long, work reliably, and enhance productivity.

Model Number 20 21
Series Number
Configuration
Serial Number 8J 11C
Blade Position RH Router Bit Support
Blade Thickness 1
Blade Width 8.75
Blade Length 22.875
Hole Quantity 5
Bolt Diameter 0.75
First Hole Distance From End in Inches 2.5
Second Hole Distance From First Hole in Inches 2.484
Third Hole Distance From Second Hole in Inches 3.469
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
