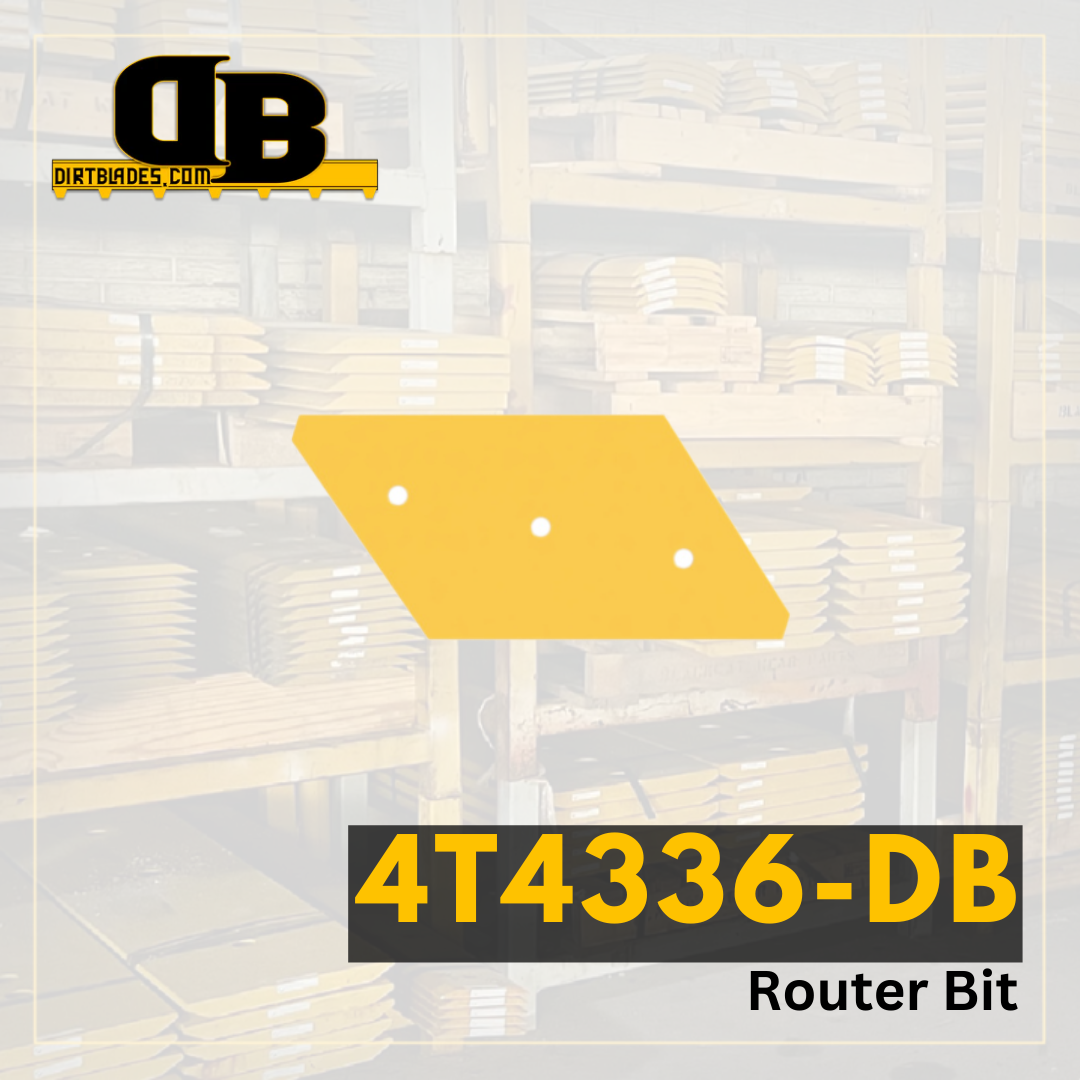

4T4336-DB | Router Bit

SKU: 4T4336
Regular price $60.24

Router bits help prevent wear and costly damage to the scraper bowl. Level cut router bits are extended below the bolt holes and are used for clean-up work, reducing windows by keeping more of the material in front of the cutting edges. Heavy-duty router bits are similar to standard router bits but offer more wear material. Standard router bits are recommended for most applications.

Model Number 613
Series Number C
Configuration
Serial Number 93X1-UP
Blade Position RH/LH Router Bit
Blade Thickness 0.625
Blade Width 8
Blade Length 17.563
Hole Quantity 3
Bolt Diameter 0.688
First Hole Distance From End in Inches 3.782
Second Hole Distance From First Hole in Inches 5
Third Hole Distance From Second Hole in Inches 5
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
