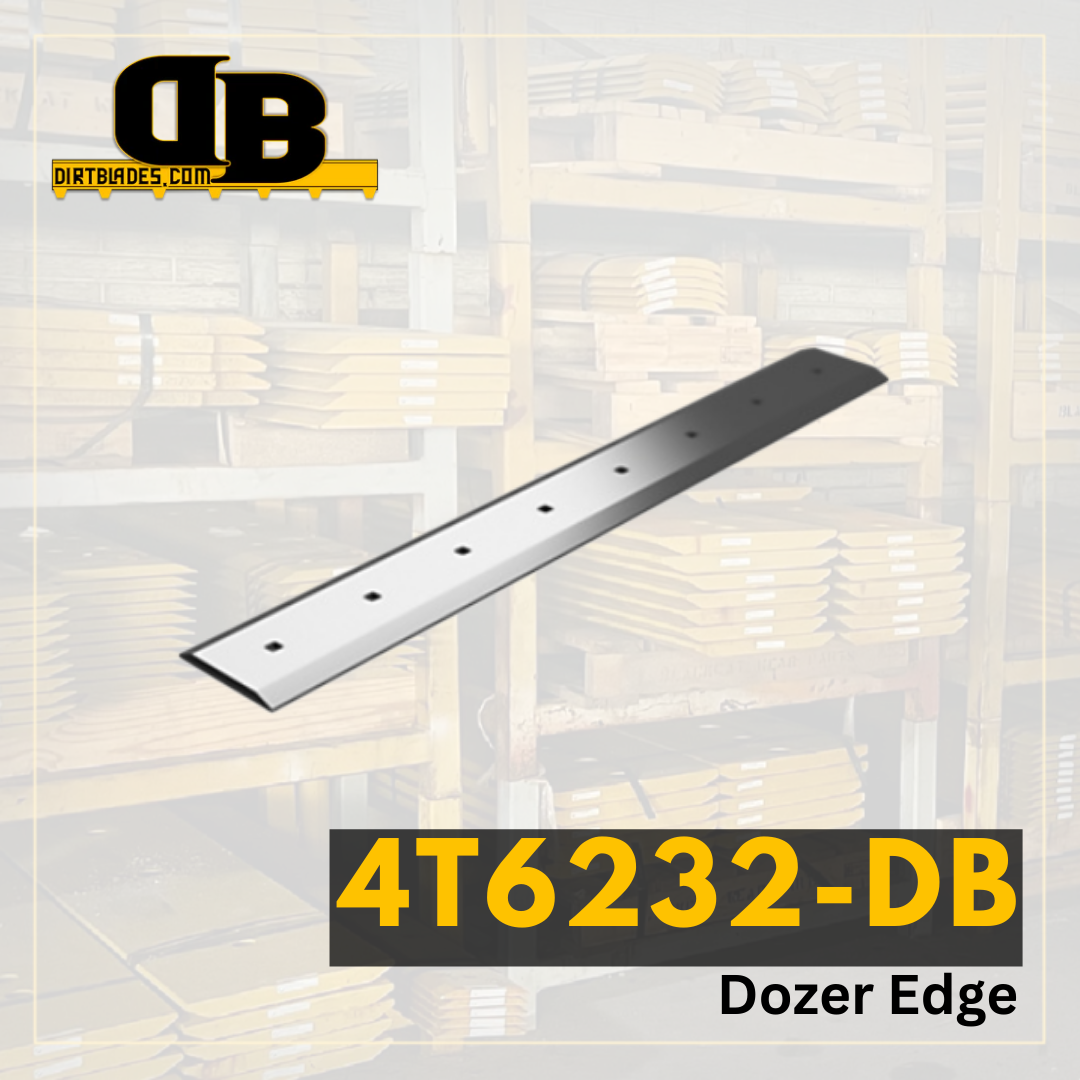

4T6232-DB | Dozer Edge

SKU: 4T6232
Regular price $112.05

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D3
Series Number D3B D3C
Configuration Power Angle Tilt
Serial Number 9RH 1GP 8SU 2JP
Blade Position Center
Blade Thickness 0.625
Blade Width 6.5
Blade Length 47.75
Hole Quantity 8
Bolt Diameter 0.625
First Hole Distance From End in Inches 2.875
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 8
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
