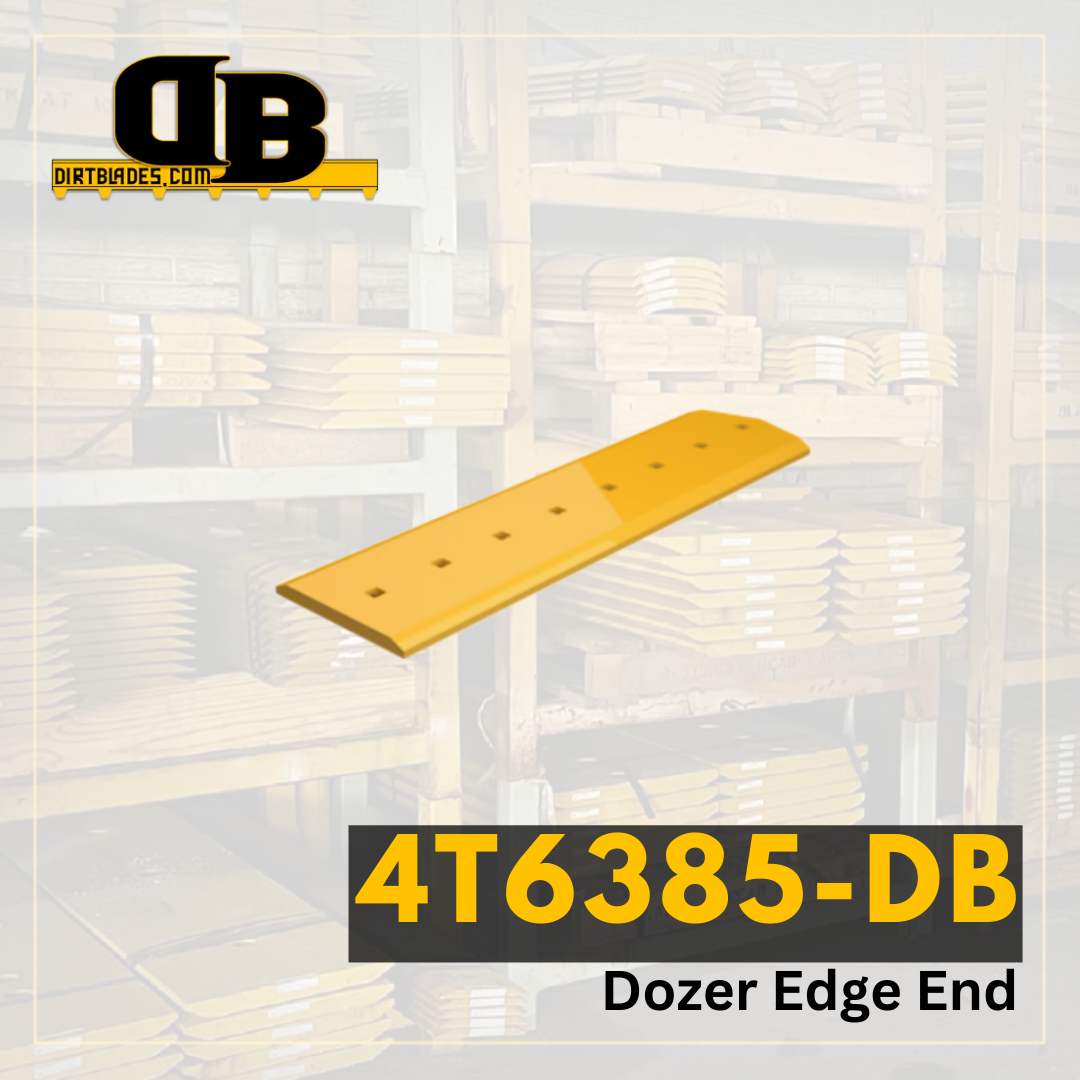

4T6385-DB | Dozer Edge End

SKU: 4T6385
Regular price $348.75

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D9
Series Number L
Configuration Semi-U
Serial Number 18Y1-1875 52Y 42S
Blade Position End
Blade Thickness 1.125
Blade Width 13
Blade Length 48.125
Hole Quantity 8
Bolt Diameter 1
First Hole Distance From End in Inches 3.25
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 8
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
