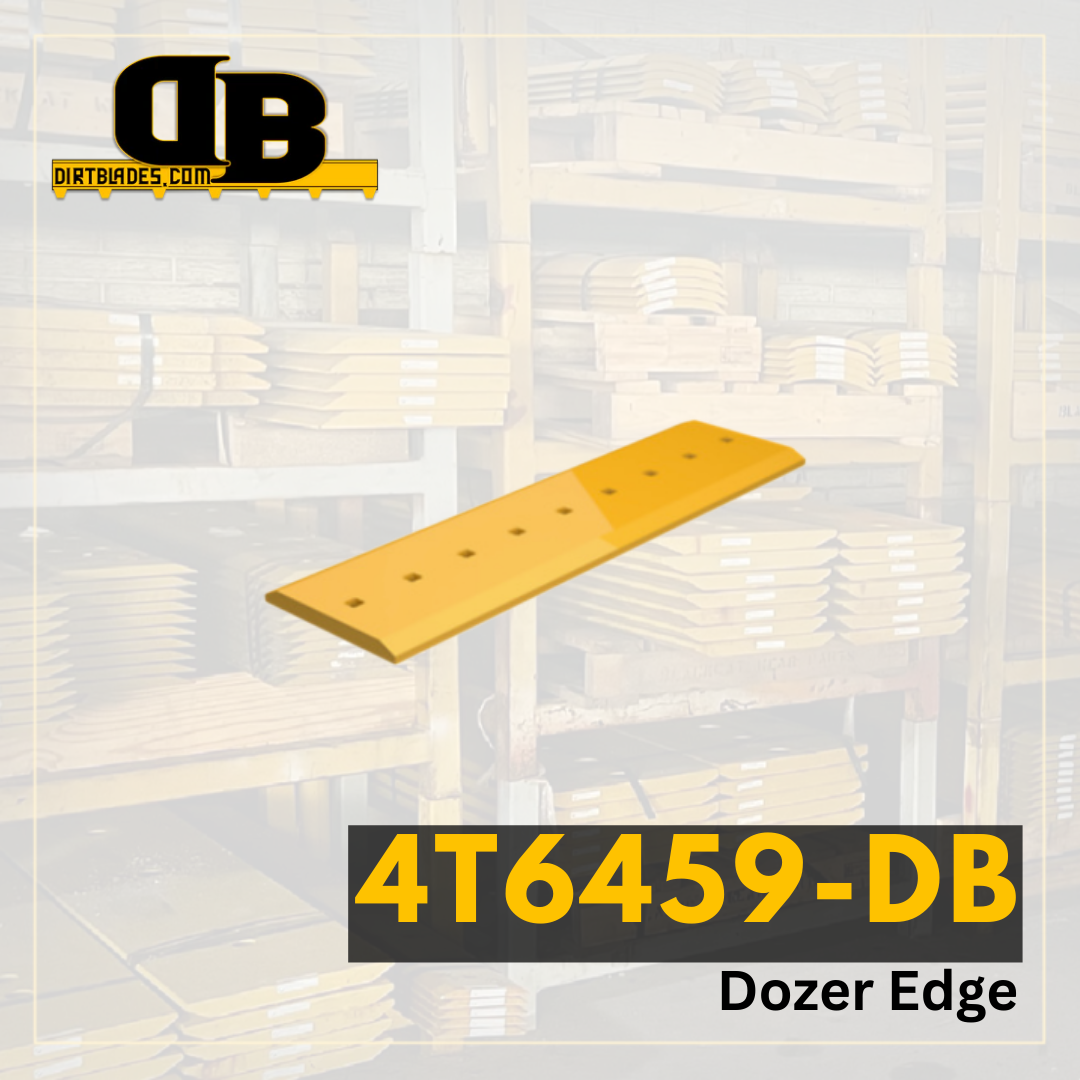

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 910 |
|---|---|
| Series Number | |
| Configuration | General Purpose |
| Serial Number | 6S6504 6S8657 |
| Blade Position | Base Edge For Bolt-on Edges or Teeth |
| Blade Thickness | 0.75 |
| Blade Width | 7.5 |
| Blade Length | 84.66 |
| Hole Quantity | 14 |
| Bolt Diameter | 0.813 |
| First Hole Distance From End in Inches | 5.625 |
| Second Hole Distance From First Hole in Inches | 12.25 |
| Third Hole Distance From Second Hole in Inches | 12.25 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 5.625 |
| Second Set of Holes Second Hole Distance From First Hole | 12.25 |
| Second Set of Holes Third Hole Distance From Second Hole | 12.25 |
