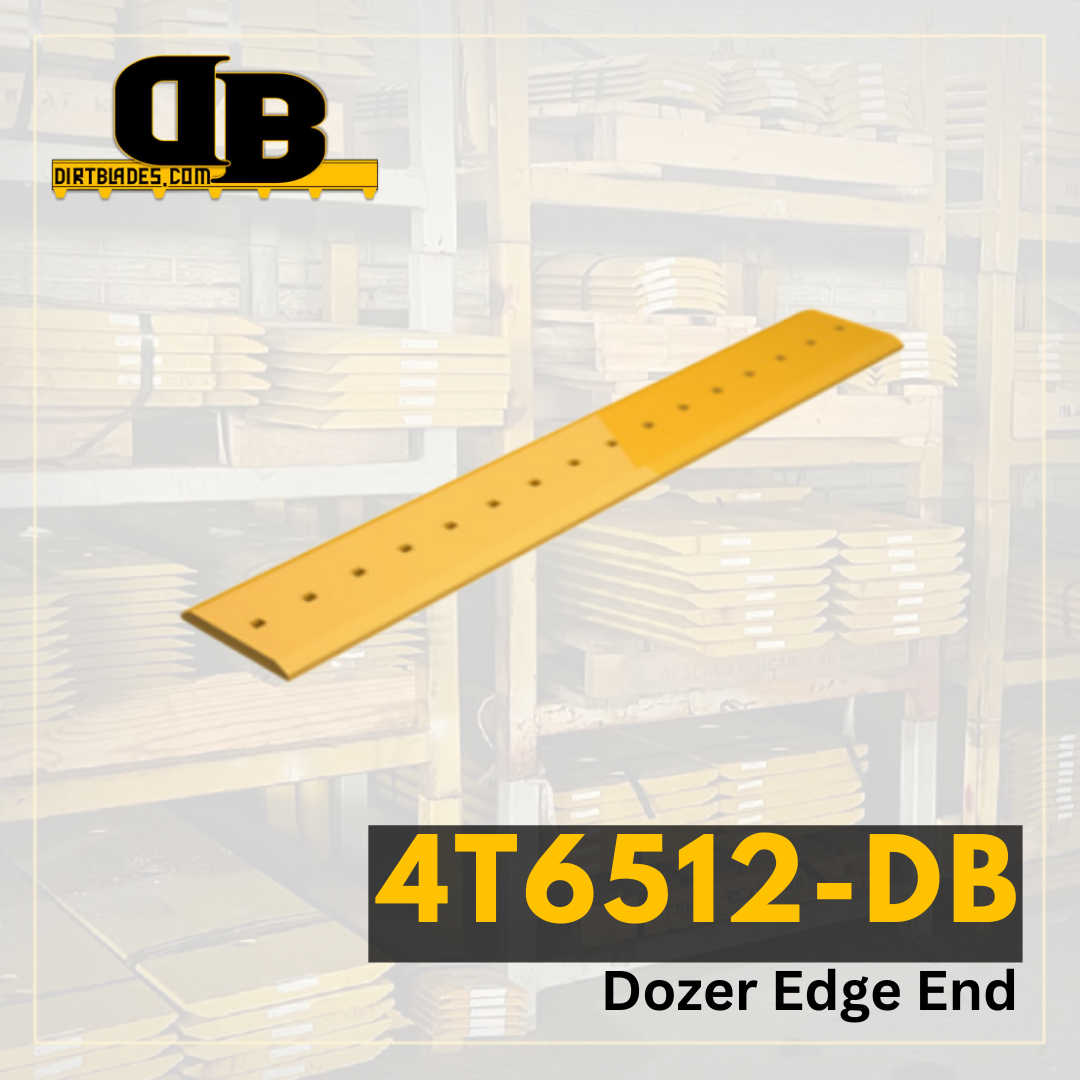

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 950 |
|---|---|
| Series Number | B E F |
| Configuration | Spade Nose Rock |
| Serial Number | 6W1136 8R8618 |
| Blade Position | Spade Nose Base Edge |
| Blade Thickness | 1.375 |
| Blade Width | 19.41 |
| Blade Length | 110.83 |
| Hole Quantity | 18 |
| Bolt Diameter | 1.375 |
| First Hole Distance From End in Inches | 7 |
| Second Hole Distance From First Hole in Inches | 5.71 |
| Third Hole Distance From Second Hole in Inches | 4.92 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
