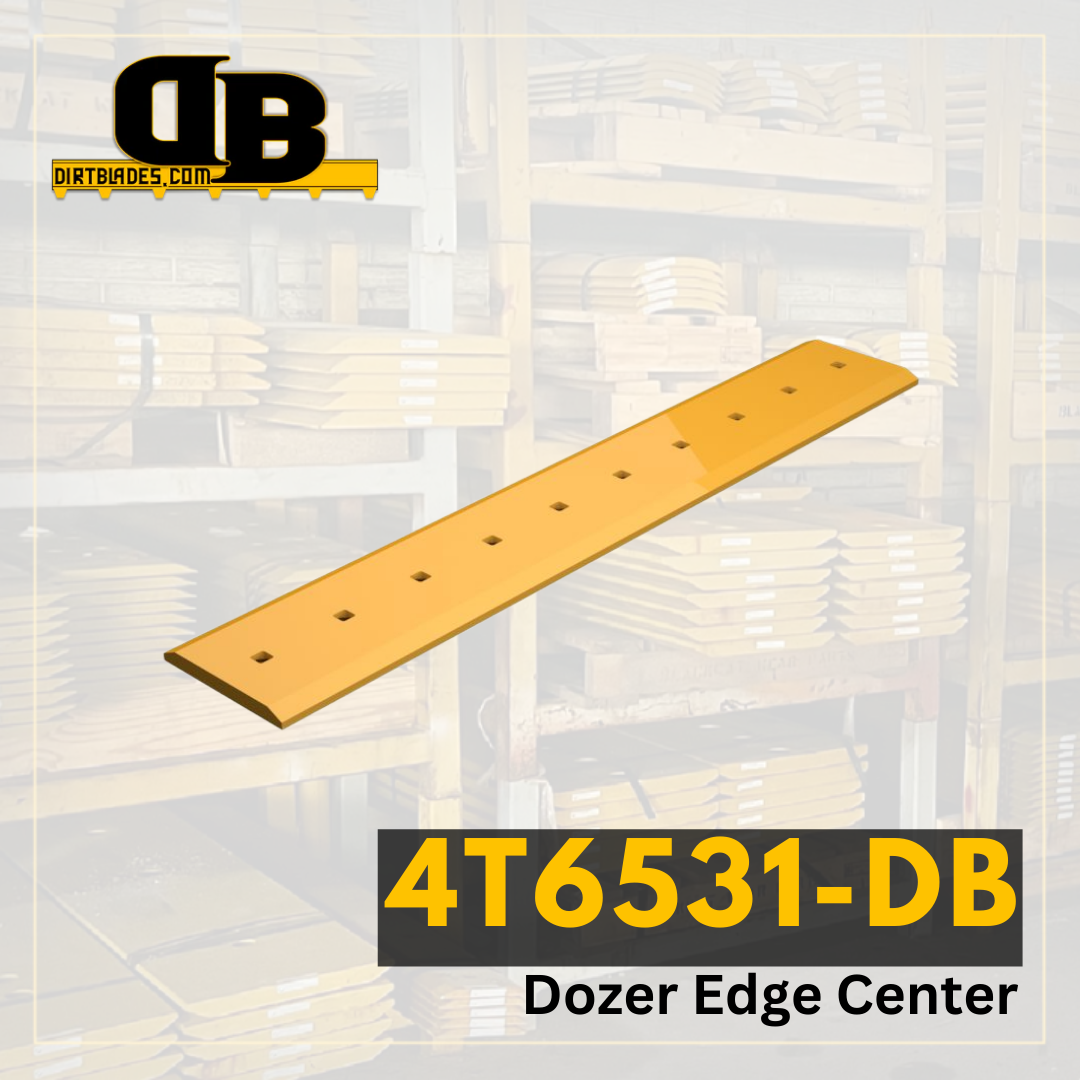

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 955 |
|---|---|
| Series Number | |
| Configuration | Corner Guard System |
| Serial Number | CGS |
| Blade Position | Base Edge With Segment Holes |
| Blade Thickness | 1.25 |
| Blade Width | 11 |
| Blade Length | 89 |
| Hole Quantity | 30 |
| Bolt Diameter | 1.063 |
| First Hole Distance From End in Inches | 4.18 |
| Second Hole Distance From First Hole in Inches | 4.92 |
| Third Hole Distance From Second Hole in Inches | 3.709 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 4.18 |
| Second Set of Holes Second Hole Distance From First Hole | 80.64 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
