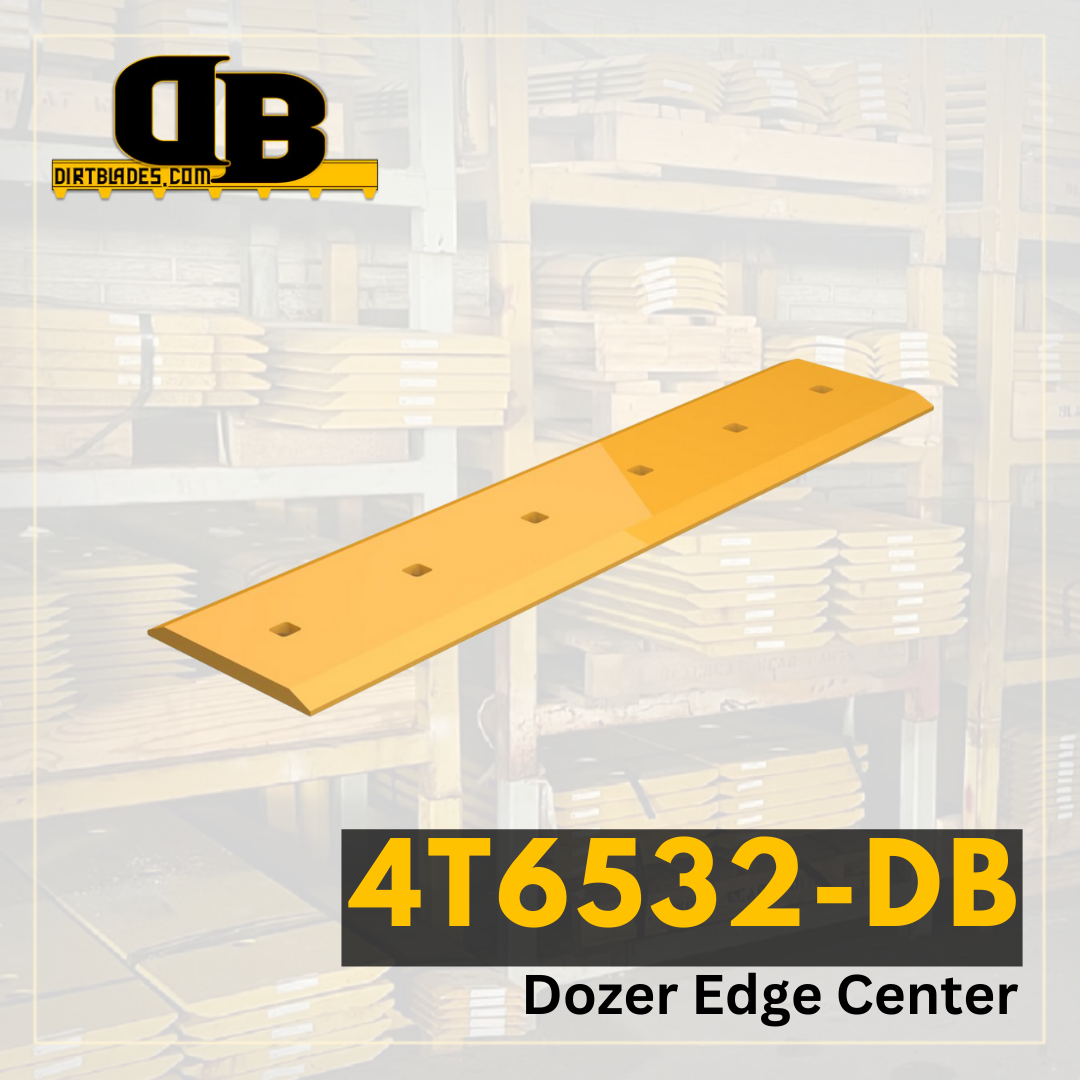

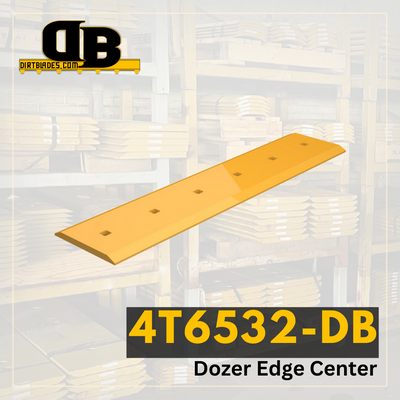

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
Model Number | D8 |
---|---|
Series Number | H |
Configuration | Angle |
Serial Number | 28E1-11125 |
Blade Position | Center |
Blade Thickness | 1 |
Blade Width | 10 |
Blade Length | 35.875 |
Hole Quantity | 6 |
Bolt Diameter | 0.875 |
First Hole Distance From End in Inches | 2.938 |
Second Hole Distance From First Hole in Inches | 6 |
Third Hole Distance From Second Hole in Inches | 6 |
Bolt Quantity for First Row of Holes | 6 |
Bolt Length for First Row of Holes | 3 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
