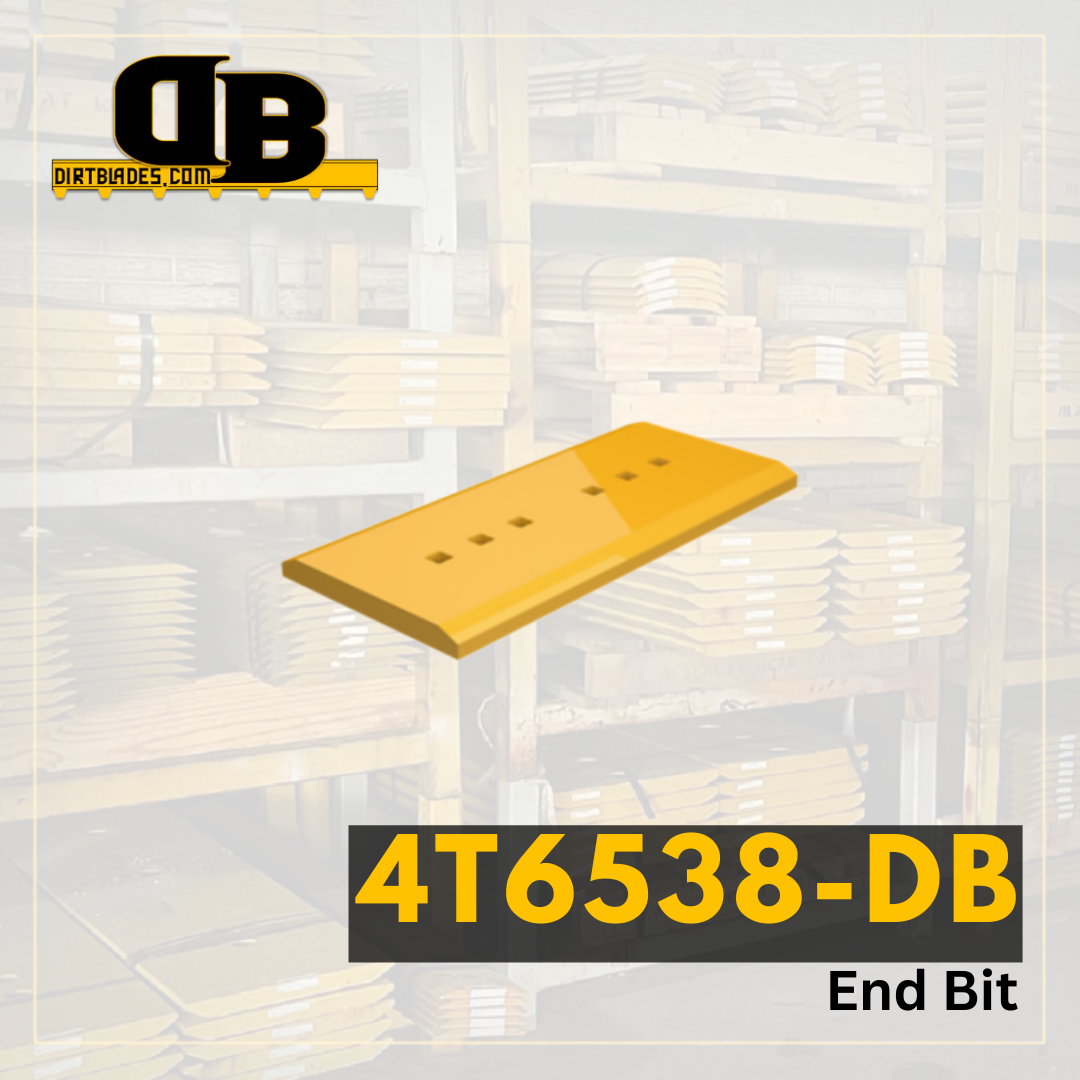

4T6538 | End Bit

SKU: 4T6538

Call for pricing - 870-536-0402

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number 963
Series Number
Configuration Corner Guard System
Serial Number 4V3224
Blade Position Base Edge With Segment Holes
Blade Thickness 1.25
Blade Width 11
Blade Length 97.5
Hole Quantity 30
Bolt Diameter 1.063
First Hole Distance From End in Inches 3.875
Second Hole Distance From First Hole in Inches 6.125
Third Hole Distance From Second Hole in Inches 4.375
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 3.875
Second Set of Holes Second Hole Distance From First Hole 89.75
Second Set of Holes Third Hole Distance From Second Hole 0
