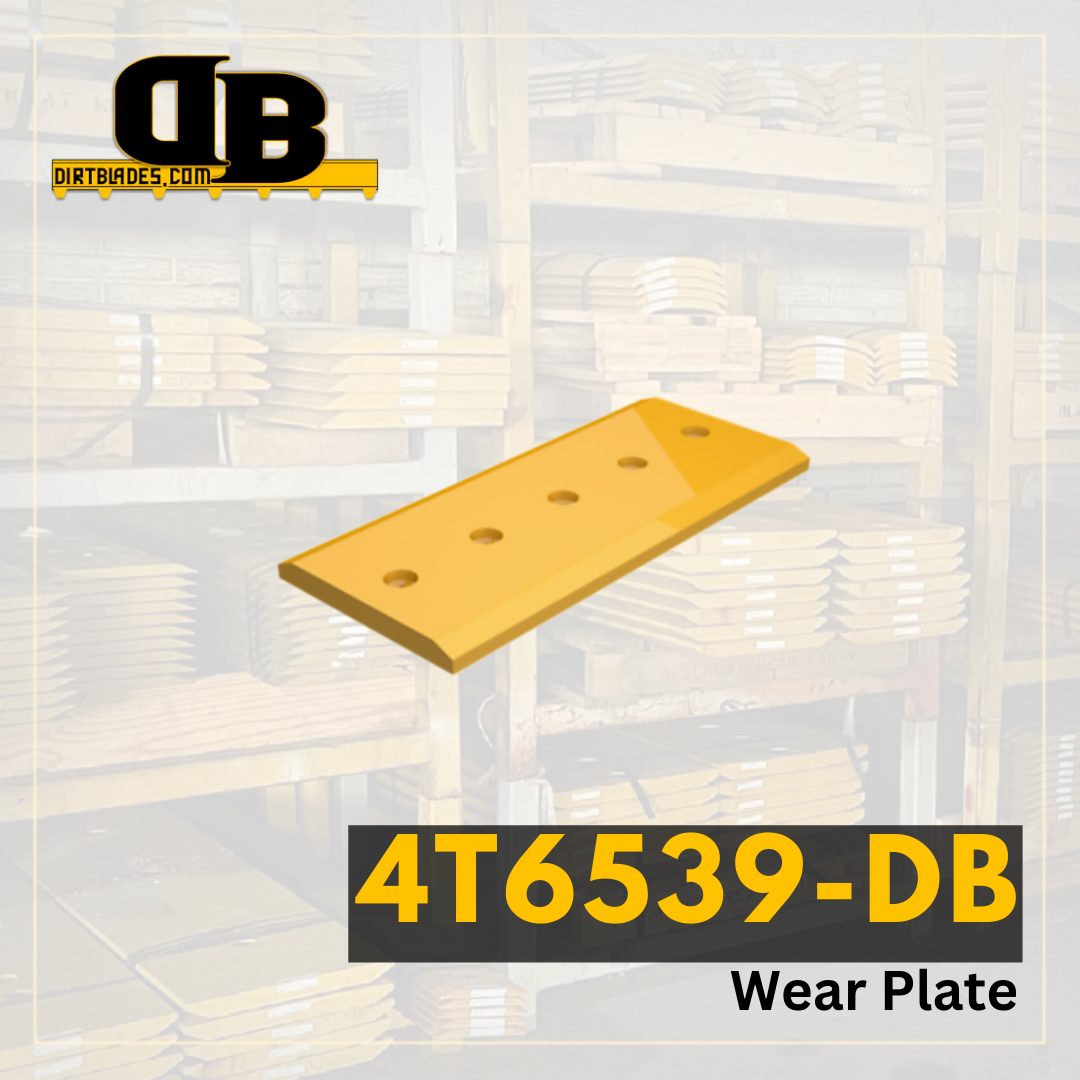

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 962 |
|---|---|
| Series Number | G |
| Configuration | General Purpose |
| Serial Number | 2747464 |
| Blade Position | Base Edge With Segment Holes |
| Blade Thickness | 1.5 |
| Blade Width | 11.811 |
| Blade Length | 112.047 |
| Hole Quantity | 30 |
| Bolt Diameter | 1.438 |
| First Hole Distance From End in Inches | 5.256 |
| Second Hole Distance From First Hole in Inches | 5.512 |
| Third Hole Distance From Second Hole in Inches | 5.689 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 101.535 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
