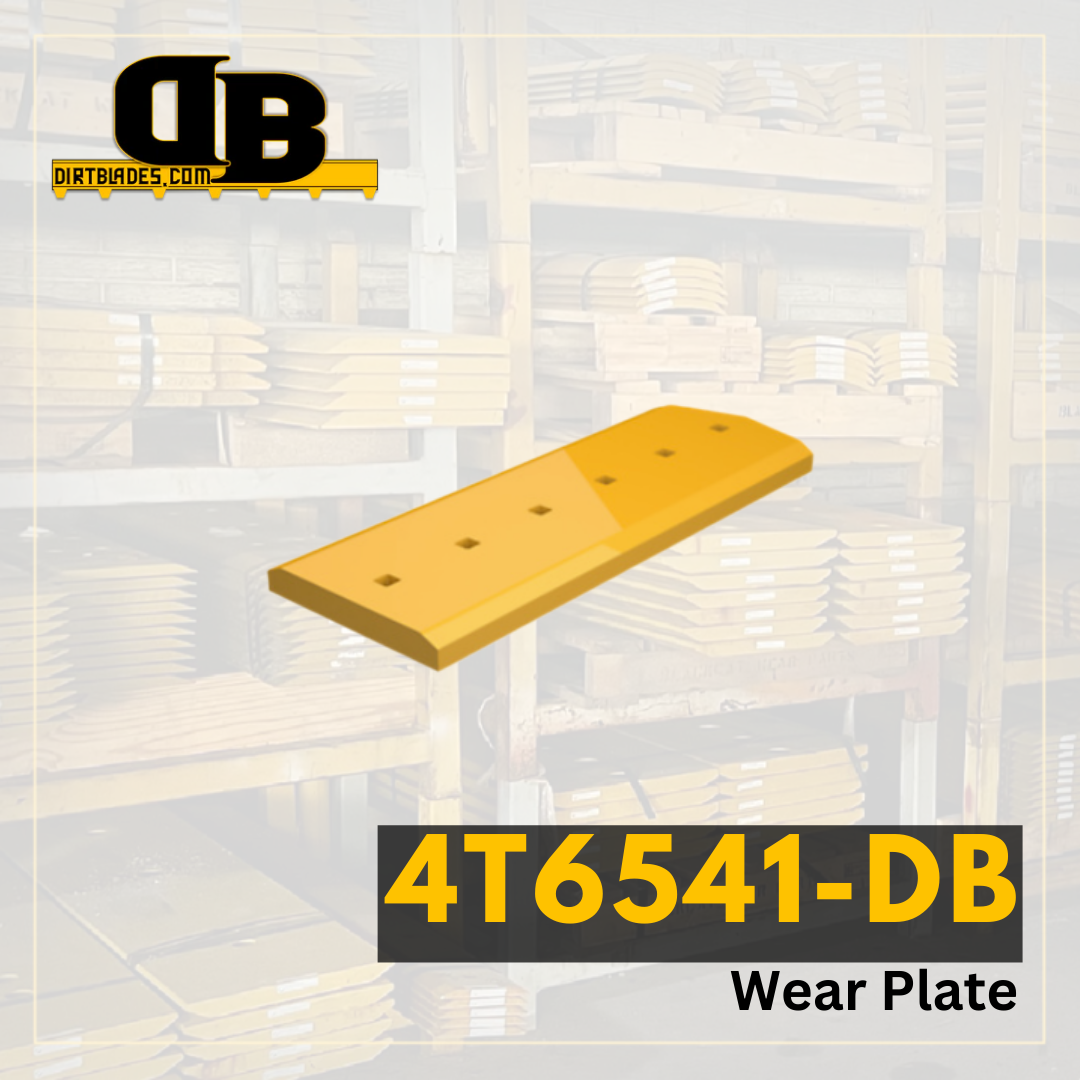

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 988 |
|---|---|
| Series | B |
| Configuration | Modulok |
| Serial Number | 5V1224 9V1344 9V0219 2Q4434 4E0065 |
| Blade Position | HD End Base Edge Wear Plate |
| Blade Thickness | 1.375 |
| Blade Width | 13 |
| Blade Length | 36 |
| Hole Quantity | 6 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 2.813 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 6 |
| Bolt Length for First Row of Holes | 3.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
