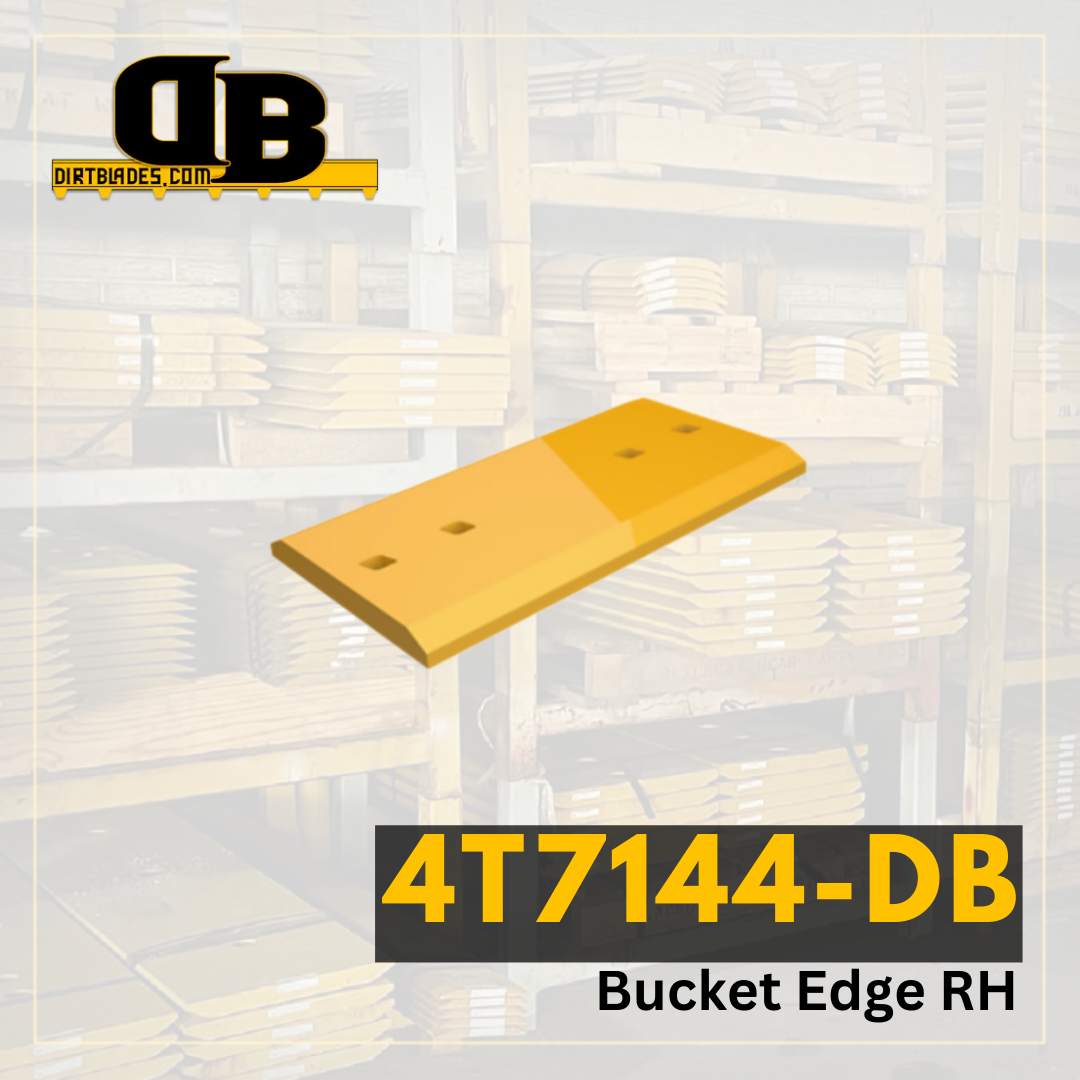

4T7144-DB | Bucket Edge RH

SKU: 4T7144
Regular price $384.10

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.

Model Number 980
Series Number F G
Configuration Spade Nose Rock
Serial Number 2Q2827 2Q2066 2Q2067
Blade Position Center RH
Blade Thickness 1.375
Blade Width 16
Blade Length 32.875
Hole Quantity 4
Bolt Diameter 1.25
First Hole Distance From End in Inches 4.438
Second Hole Distance From First Hole in Inches 5.25
Third Hole Distance From Second Hole in Inches 13.5
Bolt Quantity for First Row of Holes 4
Bolt Length for First Row of Holes 3.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
