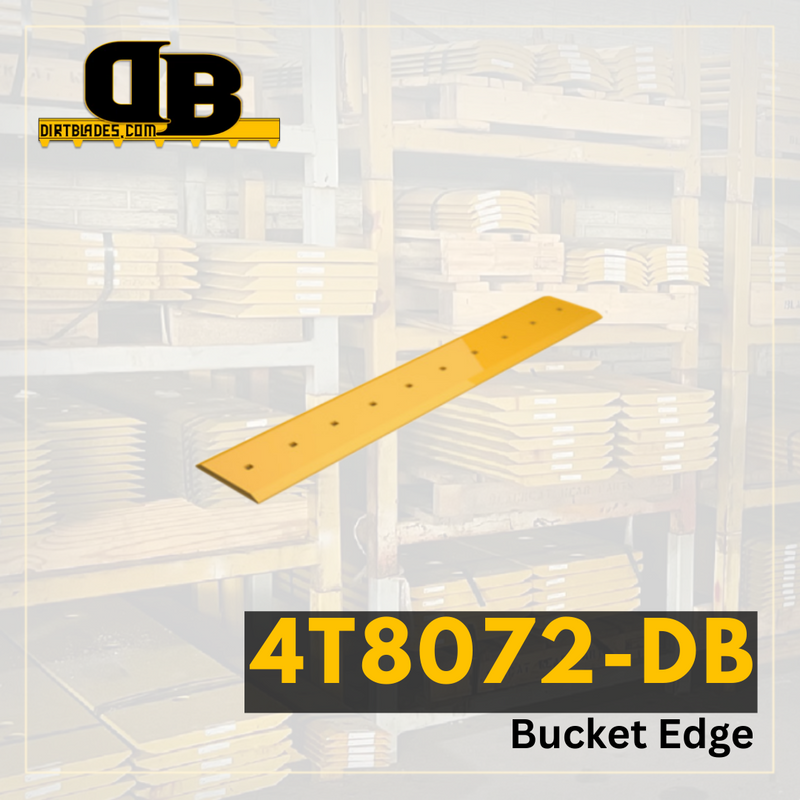

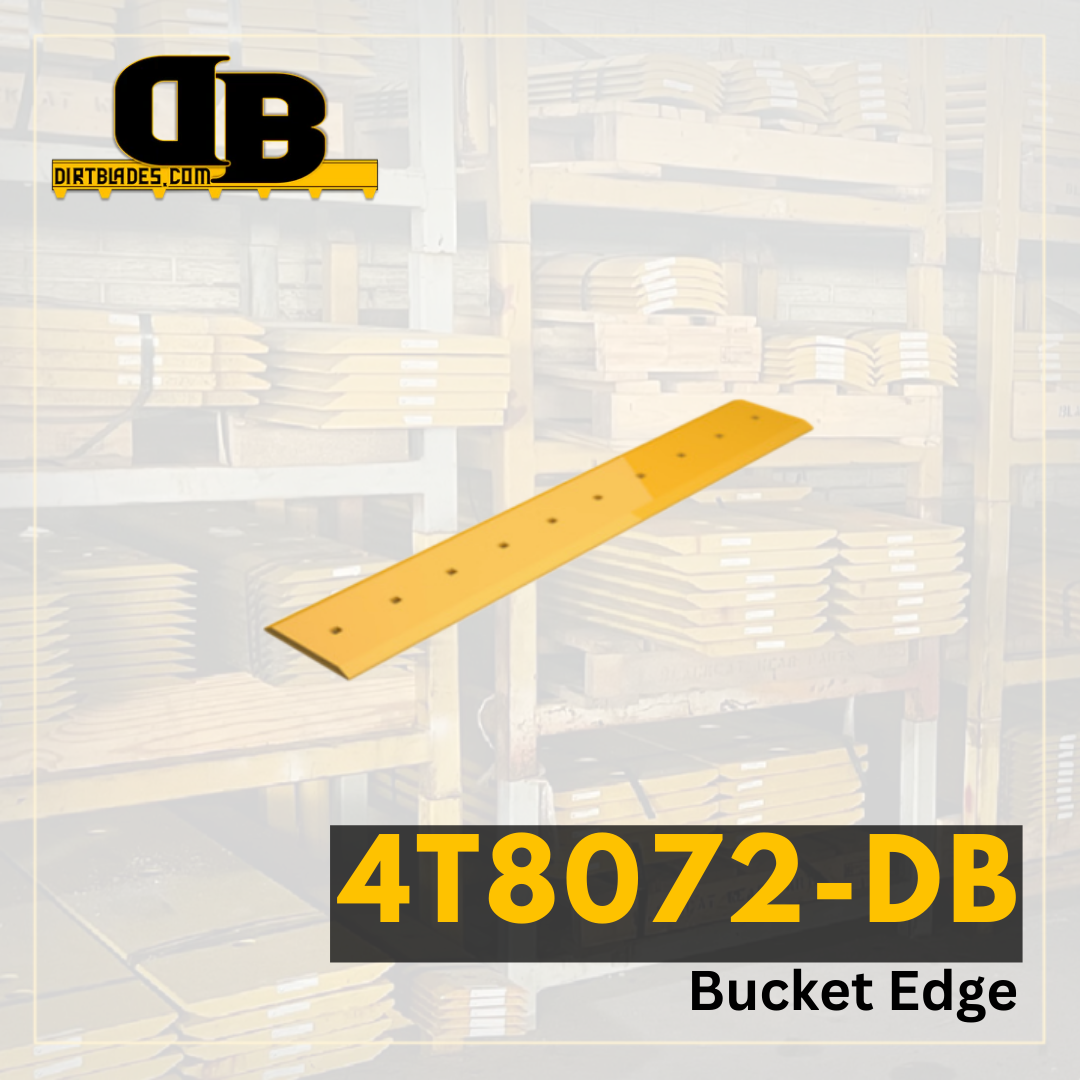

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | D8 |
|---|---|
| Series Number | H |
| Configuration | Full-U |
| Serial Number | 20F 45K 48K |
| Blade Position | 11" End |
| Blade Thickness | 1.375 |
| Blade Width | 11 |
| Blade Length | 36.375 |
| Hole Quantity | 6 |
| Bolt Diameter | 0.875 |
| First Hole Distance From End in Inches | 3.188 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 6 |
| Bolt Length for First Row of Holes | 3 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
